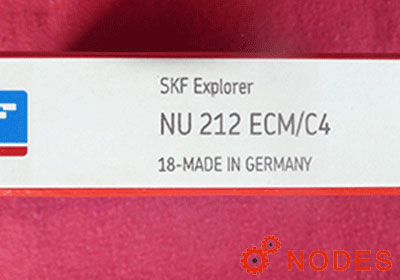

SKF NU212ECM Bearing

SKF NU212ECM cylindrical roller bearings

Also known as : NU212ECM, NU212B-MP

  • Inside Diameter: 60 mm
  • Outside Diameter: 110 mm
  • Width: 22 mm
  • Basic dynamic load rating: 108 kN
  • Basic static load rating: 102 kN

Inquire Now

SKF NU212ECM Bearing

SKF NU212ECM Bearing details

model NU212ECM
d 60 mm
D 110 mm
B 22 mm
D1 95 mm
F 72 mm
r1,2 min. 1.5 mm
r3,4 min. 1.5 mm
smax. 1.4 mm

da min 68 mm
da max 70 mm
db min 74 mm
Da max 101 mm
ra max 1.5 mm
rb max 1.5 mm

C 108 kN, Basic dynamic load rating
C0 102 kN, Basic static load rating
Pu 13.4 kN, Fatigue load limit
Reference speed 6700 r/min
Limiting speed 7500 r/min
Kr 0.15, Calculation factor
e 0.2, Limiting value
Y 0.6, Axial load factor
Angle ring HJ 212 EC
Mass 0.93 kg

Nodes bearings, SKF single row cylindrical roller bearings wholesaler, have SKF NU212ECM roller bearings in stock, SKF Explorer, Cylindrical roller bearings, single row.

related articles

Related numbers

NSK NU212EW bearing
60mm x 110mm x 22mm
FAG NU212-E-XL-TVP2 bearing
60mm x 110mm x 22mm

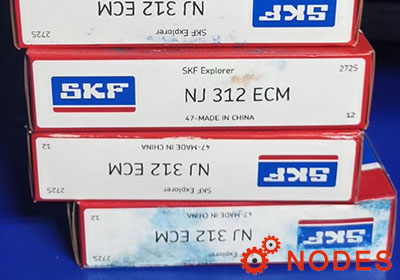

SKF NJ312ECM bearing
60mm x 130mm x 31mm

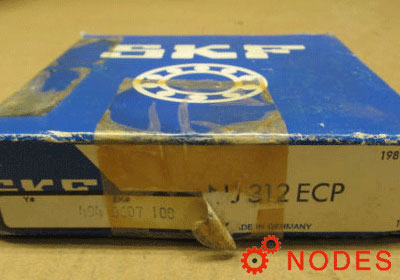

SKF NJ312ECP bearing
60mm x 130mm x 31mm

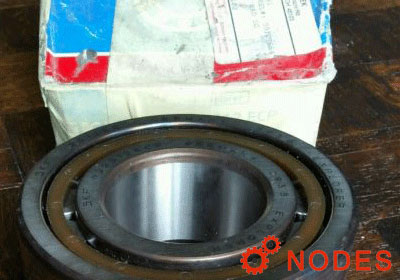

SKF NJ2312ECP bearing
60mm x 130mm x 46mm

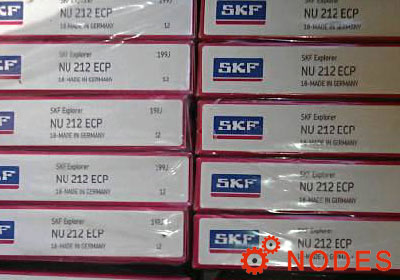

SKF NU212ECP bearing
60mm x 110mm x 22mm
SKF NU312ECP bearing
60mm x 130mm x 31mm

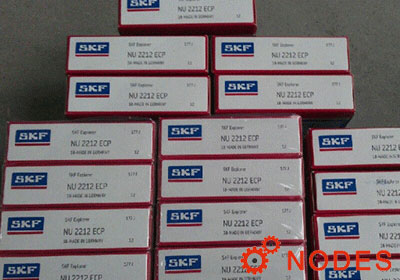

SKF NU2212ECP bearing
60mm x 110mm x 28mm

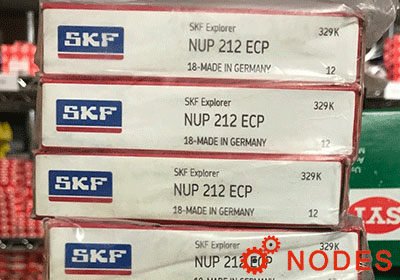

SKF NUP212ECP bearing
60mm x 110mm x 22mm

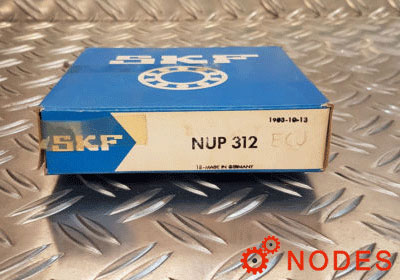

SKF NUP312ECJ bearing
60mm x 130mm x 31mm

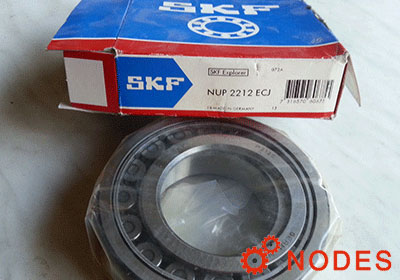

SKF NUP2212ECP bearing
