Thrust ball bearings

Thrust ball bearings are classified into those with flat seats or aligning seats depending on the shape of the outer ring seat (housing washer). They are designed to accommodate axial loads only and must not be subjected to any radial load.

Thrust ball bearings are separable, i.e. the shaft washer, housing washer(s), ball and cage assembly(s) can be mounted separately. Shaft washers have a ground bore to enable an interference fit. The bore of the housing washer is turned and always larger than the shaft washer bore.

Thrust ball bearings

Thrust ball bearing catalogue

Single direction thrust ball bearings

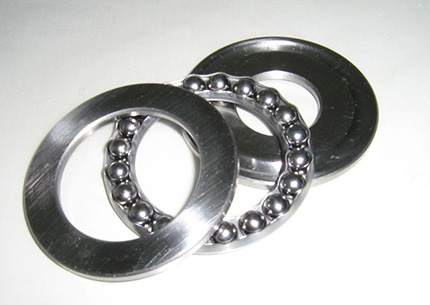

Single direction thrust ball bearings consist of a shaft washer, a housing washer and a ball and cage assembly. As their name implies, single direction thrust ball bearings can accommodate axial loads and locate a shaft axially, in one direction only.

Double direction thrust ball bearings
Double direction thrust ball bearings consist of one shaft washer, two housing washers and two ball and cage assemblies. The housing washers and ball and cage assemblies of double direction bearings are identical to those used in single direction bearings.

Thrust ball bearing applications

Thrust ball bearing typical applications include:

  • Lathe tailstocks
  • Powered jacks
  • Turn tables
  • Papermaking Machinery
  • Steel Industry

Thrust ball bearing products & sizes

Thrust ball bearing numbers, size chart
