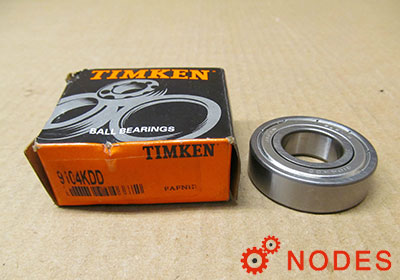

TIMKEN 9104K Bearing

TIMKEN Fafnir 9104K Deep groove ball bearings | 20x42x12mm

Also known as : 9104K

  • Inside Diameter: 20 mm
  • Outside Diameter: 42 mm
  • Width: 12 mm
  • Basic dynamic load rating: 10.7 kN
  • Basic static load rating: 5 kN

Inquire Now

TIMKEN 9104K Bearing

TIMKEN 9104K Bearing details

Bearing Number 9104K
Brand TIMKEN
Type Deep groove ball bearings
Design Units METRIC
Ball Type Steel
Bearing Weight 0.073 Kg
0.16 lb
d - Bore 20.000 mm
0.7874 in
D - Outer Diameter 42.000 mm
1.6535 in
Bearing Width 12.000 mm
0.4724 in
do - Ball Diameter 6.350000 mm
0.25000 in
Ce - Dynamic Radial Rating1 10700 N
2400 lbf
C0 - Static Radial Rating 5000 N
1120 lbf
Limiting Speed (Grease) 9680 rpm
Limiting Speed (Oil) 11290 rpm
R - Inner Ring "To Clear" Radius2 0.600 mm
0.024 in
r - Outer Ring "To Clear" Radius3 0.600 mm
0.024 in
da - Inner Ring Backing Diameter 22.600 mm
0.890 in
Da - Outer Ring Backing Diameter 37.100 mm
1.460 in

As TIMKEN bearing distributor, Nodes bearings have TIMKEN 9104K bearings in stock. Radial ball bearings consist of an inner and outer ring with a cage containing a complement of precision balls. The standard Conrad-type bearing has a deep-groove construction capable of handling radial and axial loads from either direction in versatile designs that permit relatively high-speed operation.
