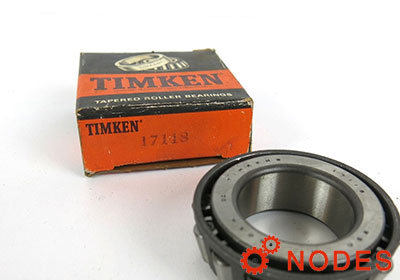

TIMKEN 17118-17244-B Bearing

TIMKEN 17118-17244-B tapered bearings with Flange

Also known as : 17118-17244-B

  • Inside Diameter: 29.987 mm
  • Outside Diameter: 61.999 mm
  • Width: 5.271 mm
  • Basic dynamic load rating: 43.2 kN
  • Basic static load rating: 44.1 kN

Inquire Now

TIMKEN 17118-17244-B Bearing

TIMKEN 17118-17244-B Bearing details

Series 17000
model 17118-17244-B
Cone Part Number 17118
Cup Part Number 17244-B
Design Units Imperial
Cage Type Stamped Steel
Bearing Weight 0.300 Kg
0.70 lb
Dimensions
d - Bore 29.987 mm
1.1806 in
D - Cup Outer Diameter 61.999 mm
2.4409 in
D1 - Flange Outer Diameter 65.862 mm
2.5930 in
B - Cone Width 16.566 mm
0.6522 in
C - Cup Width 14.288 mm
0.5625 in
C1 - Cup Flange Width 3.556 mm
0.1400 in
T - Bearing Width to Flange 5.271 mm
0.2075 in
T1 - Bearing Width 16.002 mm
0.6300 in
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius 1.5 mm
0.06 in
r - Cup Backface "To Clear" Radius 1.5 mm
0.06 in
da - Cone Frontface Backing Diameter 34.5 mm
1.36 in
db - Cone Backface Backing Diameter 38.5 mm
1.52 in
Da - Cup Frontface Backing Diameter 58.93 mm
2.34 in
Ab - Cage-Cone Frontface Clearance 2.5 mm
0.1 in
Aa - Cage-Cone Backface Clearance -0.5 mm
-0.02 in
a - Effective Center Location -3.6 mm
-0.14 in
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions) 11200 N
2520 lbf
C1 - Dynamic Radial Rating (1 million revolutions) 43200 N
9720 lbf
C0 - Static Radial Rating 44100 N
9910 lbf
Ca90 - Dynamic Thrust Rating (90 million revolutions) 7340 N
1650 lbf
Factors
K - Factor 1.53
e - ISO Factor 0.38
Y - ISO Factor 1.57
G1 - Heat Generation Factor (Roller-Raceway) 11.8
G2 - Heat Generation Factor (Rib-Roller End) 7.49
Cg - Geometry Factor 0.0579

As TIMKEN bearing distributor, Nodes bearings have TIMKEN 17118-17244-B bearings in stock, TSF (Tapered Single with Flange) Imperial , Tapered roller bearings.

Like the TS bearing design, the TSF design consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring). It is typically mounted in opposing pairs on a shaft. TSF bearings have flanged cups to facilitate axial location and accurately align seals in through-bored housings.
