IKO BR162416UU Bearing

IKO BR162416UU inch needle bearings

Also known as : BR162416UU,NCS1616

  • Inside Diameter: 25.4 mm
  • Outside Diameter: 38.1 mm
  • Width: 25.4 mm
  • Basic dynamic load rating: 23.6 kN
  • Basic static load rating: 31.3 kN

Inquire Now

IKO BR162416UU needle bearing

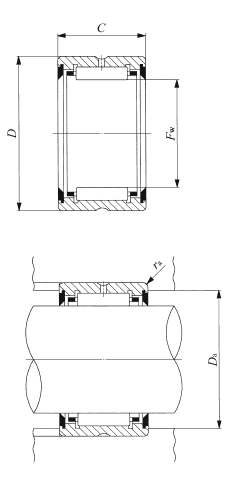

IKO BR162416UU Bearing details

model BR162416UU
Fw 25.400 mm
D 38.100 mm
C 25.400 mm
rs min 1.0 mm
Da max 32.9 mm
C 23600 N, Basic dynamic load rating
C0 31300 N, Basic static load rating
Allowable rotational speed 8000 rpm
Mass 83 g (approx.)

Nodes bearings, IKO needle roller bearings wholesaler, have IKO BR162416UU inch needle bearings in stock. machined type Needle roller bearings with seal, without inner ring, inch series.

IKO BR162416UU bearing cross reference

INA NCS1616 bearing
25.4mm x 38.1mm x 25.4mm
