Nodes company is NSK bearings distributor, and supply all kinds of NSK bearings. We have a wide variety of NSK bearings in stock. With more than 4000 NSK bearings and services available, Nodes can provide you with the right solution, on time deliveries, and no minimums quantities.
NSK bearings can be found in all types of applications. In the toughest environments and under the harshest conditions, NSK bearings are reliable, durable, and cost efficient.
NSK bearing catalogue - Size chart

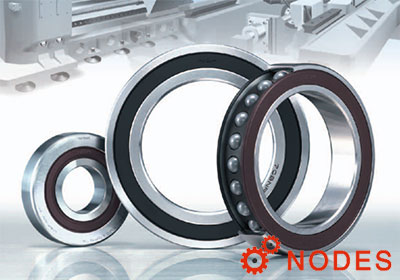

NSK super precision angular contact ball bearings
Nodes bearings supplies a wide range of NSK super precision angular contact ball bearings. NSK precision angular contact ball bearings provide the perfect solution for applications requiring high runout accuracy of rotating machine parts, such as the machine tool main spindles, or the application of faster rotating speeds.
NSK all ceramic bearings
With ceramic outer/inner rings and balls, NSK all-ceramic bearings have self-llubricating fluororesin cages and are suitable for corrosive environments & non-magnetic requirement from normal atmosphere up to vacuum.
NSK stainless steel bearings
NSK stainless steel ball bearings are suitable for high-humidity environments. As a result, it contributes towards reducing maintenance, downtime and replacement costs in operation. These bearings include open type, shielded type, and sealed type.

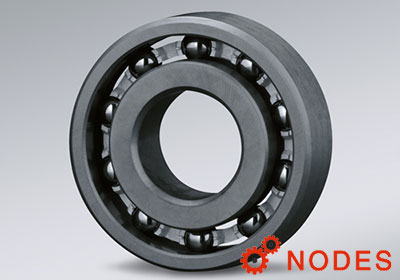

NSK Carbide-Based Ceramic Ball Bearings
NSK Carbide-Based Ceramic Ball Bearings with ceramic outer/inner rings and balls have self-lubricating fluororesin cages and are designed for strong acid, strong alkali and corrosive gas environments.

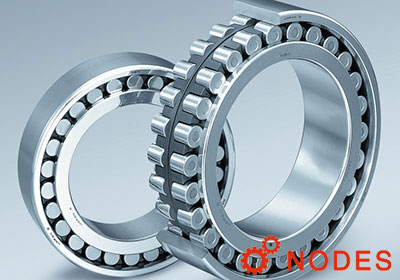

NSK super precision cylindrical roller bearings
Nodes supplies NSK super precision cylindrical roller bearings, including single and double row. NSK Super Precision Cylindrical Roller Bearings are designed specifically to handle large radial loads in high-speed spindle applications that demand high running accuracy (runout) of bearing-spindle arrangements.
NSK ball screw support bearings
Nodes supplies NSK ball screw support bearings. NSK super precise angular contact thrust ball bearings for precision ball screws have been designed specifically for each application. Lineup includes both a highly rigid series and high-capacity series.
NSK deep groove ball bearings
NSK deep groove ball bearings are the most common type of rolling bearings. NSK deep groove ball bearings often have steel shields or rubber seals installed on one or both sides and are prelubricated with grease. Also, snap rings are sometimes used on the periphery.

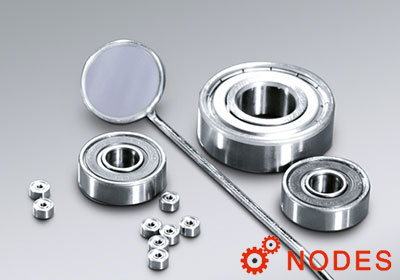

NSK miniature ball bearings
NSK offers a full range of metric and inch size miniature ball bearings with bore diameters of less than 10mm. As a NSK bearing distributor, NSK miniature ball bearings is available from stock, including metric design, metric design with flange, inch design, inch design with flange.
NSK angular contact ball bearings
The NSK angular contact ball bearings have a contact angle so that they can sustain significant axial loads in one direction together with radial loads. NSK angular contact ball bearings: high quality steel, advanced grease technology, high grade balls, super finished raceways, contact angle
NSK thrust ball bearings
Thrust ball bearings are classified into those with flat seats or aligning seats depending on the shape of the outer ring seat (housing washer). They can sustain axial loads but no radial loads.
NSK cylindrical roller bearings
In cylindrical roller bearings, the cylindrical rollers are in linear contact with the raceways. They have a high radial load capacity and are suitable for high speeds.
NSK tapered roller bearings
NSK tapered roller bearings are designed so the apices of the cones formed by the raceways of the cone and cup and the conical rollers all coincide at one point on the axis of the bearing.
NSK Spherical Roller Bearings
Nodes bearings, NSK bearing distributor, has NSK spherical roller bearings in stock. Types EA, C, CD, CA, which are designed for high load capacity, are available. Types EA, C, and CD have pressed steel cages; and type CA has machined brass cages. Type EA has especially high load capacity, features low torque, and has a high-strength cage.
NSK LM11949R/LM11910R roller be
NSK LM11949R/LM11910R bearing, single row tapered roller bearing Inch Design, Dimensions: 19.05mm x 45.237mm x 15.494mm, Limiting Speeds:12000.
- Brand: NSK
- Dimension: 19.05mm x 45.237mm x 15.494mm
- Basic dynamic load rating: 28.5 kN
- Basic static load rating: 28.9 kN
NSK HR32304J roller bearings |
NSK HR32304J bearing, 2FD(iso355 dimensions series approx), single row tapered roller bearing, Dimensions: 20mm x 52mm x 22.25mm, Limiting Speeds:11000.
- Brand: NSK
- Dimension: 20mm x 52mm x 22.25mm
- Basic dynamic load rating: 45.5 kN
- Basic static load rating: 47.5 kN
NSK HR32305J roller bearings |
NSK HR32305J bearing, 2FD(iso355 dimensions series approx), single row tapered roller bearing, Dimensions: 25mm x 62mm x 25.25mm, Limiting Speeds:8500.
- Brand: NSK
- Dimension: 25mm x 62mm x 25.25mm
- Basic dynamic load rating: 62.5 kN
- Basic static load rating: 66 kN
NSK HR32006XJ roller bearings |
NSK HR32006XJ bearing, 4CC(iso355 dimensions series approx), single row tapered roller bearing, Dimensions: 30mm x 55mm x 17mm, Limiting Speeds:9000.
- Brand: NSK
- Dimension: 30mm x 55mm x 17mm
- Basic dynamic load rating: 36 kN
- Basic static load rating: 44.5 kN
NSK HR32008XJ roller bearings |
NSK HR32008XJ bearing, 3CD(iso355 dimensions series approx), single row tapered roller bearing, Dimensions: 40mm x 68mm x 19mm, Limiting Speeds:7100.
- Brand: NSK
- Dimension: 40mm x 68mm x 19mm
- Basic dynamic load rating: 53 kN
- Basic static load rating: 71 kN
NSK HR32009XJ roller bearings |
NSK HR32009XJ bearing, 3CC(iso355 dimensions series approx), single row tapered roller bearing, Dimensions: 45mm x 75mm x 20mm, Limiting Speeds:6300.
- Brand: NSK
- Dimension: 45mm x 75mm x 20mm
- Basic dynamic load rating: 60 kN
- Basic static load rating: 83 kN
NSK HR32011XJ roller bearings |
NSK HR32011XJ bearing, 3CC(iso355 dimensions series approx), single row tapered roller bearing, Dimensions: 55mm x 90mm x 23mm, Limiting Speeds:5300.
- Brand: NSK
- Dimension: 55mm x 90mm x 23mm
- Basic dynamic load rating: 81.5 kN
- Basic static load rating: 117 kN
NSK HR32012XJ roller bearings |
NSK HR32012XJ bearing, 4CC(iso355 dimensions series approx), single row tapered roller bearing, Dimensions: 60mm x 95mm x 23mm, Limiting Speeds:5000.
- Brand: NSK
- Dimension: 60mm x 95mm x 23mm
- Basic dynamic load rating: 85.5 kN
- Basic static load rating: 127 kN
NSK NU2207 Cylindrical roller b
NSK NU2207 bearing, NU type cylindrical roller bearings, Dimensions: 35mm x 72mm x 23mm, Limiting Speeds:8500.
- Brand: NSK
- Dimension: 35mm x 72mm x 23mm
- Basic dynamic load rating: 49 kN
- Basic static load rating: 51 kN
NSK 23238CE4 Spherical roller b
NSK 23238CE4 bearing, spherical roller bearing with Cylindrical Bore, Dimensions: 190mm x 340mm x 120.0mm, Limiting Speeds:800.
- Brand: NSK
- Dimension: 190mm x 340mm x 120.0mm
- Basic dynamic load rating: 1440 kN
- Basic static load rating: 2350 kN
NSK HR30312J roller bearings |
NSK HR30312J bearing, 2FB(iso355 dimensions series approx), single row tapered roller bearing, Dimensions: 60mm x 130mm x 33.5mm, Limiting Speeds:4000.
- Brand: NSK
- Dimension: 60mm x 130mm x 33.5mm
- Basic dynamic load rating: 174 kN
- Basic static load rating: 201 kN
NSK HR32015XJ roller bearings |
NSK HR32015XJ bearing, 4CC(iso355 dimensions series approx), single row tapered roller bearing, Dimensions: 75mm x 115mm x 25mm, Limiting Speeds:4000.
- Brand: NSK
- Dimension: 75mm x 115mm x 25mm
- Basic dynamic load rating: 109 kN
- Basic static load rating: 171 kN
NSK 23152CAE4 Spherical roller
NSK 23152CAE4 bearing, spherical roller bearing with Cylindrical Bore, Dimensions: 260mm x 440mm x 144.0mm, Limiting Speeds:600.
- Brand: NSK
- Dimension: 260mm x 440mm x 144.0mm
- Basic dynamic load rating: 2160 kN
- Basic static load rating: 3750 kN
NSK HR30211J roller bearings |
NSK HR30211J bearing, 3DB(iso355 dimensions series approx), single row tapered roller bearing, Dimensions: 55mm x 100mm x 22.75mm, Limiting Speeds:5000.
- Brand: NSK
- Dimension: 55mm x 100mm x 22.75mm
- Basic dynamic load rating: 94.5 kN
- Basic static load rating: 113 kN
NSK 24160CAE4 Spherical roller
NSK 24160CAE4 bearing, spherical roller bearing with Cylindrical Bore, Dimensions: 300mm x 500mm x 200.0mm, Limiting Speeds:500.
- Brand: NSK
- Dimension: 300mm x 500mm x 200.0mm
- Basic dynamic load rating: 3100 kN
- Basic static load rating: 5800 kN
NSK 24148CE4 Spherical roller b
NSK 24148CE4 bearing, spherical roller bearing with Cylindrical Bore, Dimensions: 240mm x 400mm x 160.0mm, Limiting Speeds:670.
- Brand: NSK
- Dimension: 240mm x 400mm x 160.0mm
- Basic dynamic load rating: 2130 kN
- Basic static load rating: 3800 kN
NSK 22352CAE4 Spherical roller
NSK 22352CAE4 bearing, spherical roller bearing with Cylindrical Bore, Dimensions: 260mm x 540mm x 165.0mm, Limiting Speeds:630.
- Brand: NSK
- Dimension: 260mm x 540mm x 165.0mm
- Basic dynamic load rating: 3100 kN
- Basic static load rating: 4600 kN
NSK 05068R/05185R roller bearin
NSK 05068R/05185R bearing, single row tapered roller bearing Inch Design, Dimensions: 17.462mm x 47mm x 14.381mm, Limiting Speeds:11000.
- Brand: NSK
- Dimension: 17.462mm x 47mm x 14.381mm
- Basic dynamic load rating: 23.8 kN
- Basic static load rating: 23.9 kN
NSK A6075R/A6157R roller bearin
NSK A6075R/A6157R bearing, single row tapered roller bearing Inch Design, Dimensions: 19.05mm x 39.992mm x 12.014mm, Limiting Speeds:13000.
- Brand: NSK
- Dimension: 19.05mm x 39.992mm x 12.014mm
- Basic dynamic load rating: 14.9 kN
- Basic static load rating: 15.7 kN
NSK 05075R/05185R roller bearin
NSK 05075R/05185R bearing, single row tapered roller bearing Inch Design, Dimensions: 19.05mm x 47mm x 14.381mm, Limiting Speeds:11000.
- Brand: NSK
- Dimension: 19.05mm x 47mm x 14.381mm
- Basic dynamic load rating: 23.8 kN
- Basic static load rating: 23.9 kN
NSK 09067/09195 roller bearings
NSK 09067/09195 bearing, single row tapered roller bearing Inch Design, Dimensions: 19.05mm x 49.225mm x 18.034mm, Limiting Speeds:11000.
- Brand: NSK
- Dimension: 19.05mm x 49.225mm x 18.034mm
- Basic dynamic load rating: 37.5 kN
- Basic static load rating: 37 kN
NSK LM11749R/LM11710R roller be
NSK LM11749R/LM11710R bearing, single row tapered roller bearing Inch Design, Dimensions: 17.462mm x 39.878mm x 13.843mm, Limiting Speeds:13000.
- Brand: NSK
- Dimension: 17.462mm x 39.878mm x 13.843mm
- Basic dynamic load rating: 22.5 kN
- Basic static load rating: 22.5 kN
NSK A5069R/A5144R roller bearin
NSK A5069R/A5144R bearing, single row tapered roller bearing Inch Design, Dimensions: 17.455mm x 36.525mm x 11.112mm, Limiting Speeds:14000.
- Brand: NSK
- Dimension: 17.455mm x 36.525mm x 11.112mm
- Basic dynamic load rating: 11.6 kN
- Basic static load rating: 11 kN
NSK N series metric thin section bearings
NB7 Type An NSK original, the NB7 type is the thinnest deep groove ball bearing. The minimal space required for the bearing facilitates downsizing of equipment. 68 and 69 Types These are NSK thin deep groove ball bearings available in open and sealed
NSK water pump bearings
NSK water pump bearings come in two types. One is a Ball Ball type (BWF) and the other is a Ball Roller type (RWF). The Ball Roller type design offers a much higher radial load capability of the roller row, which is particularly important when suppor
NSK HUB 1 wheel bearings
For HUB 1, NSK uses proprietary bearing-type designations such as BWD for ball bearings and KWD for tapered roller bearings. The HUB 1 NSK wheel bearings units are double-row angular contact ball bearings (BWD) and double-row tapered roller bearings
NSK single row deep groove ball bearings
NSK single-row deep groove ball bearings are the most common type of rolling bearings. Their use is very widespread.
NSK Hub Unit Bearings
NSK wheel bearings have to meet increasingly strict requirements that demand lighter weight, greater promotion of fuel efficiency, and enhanced module production systems. Along with the widespread adoption of antilock braking systems (ABS) to ensure
NSK tapered roller bearings
NSK tapered roller bearings use conical rollers guided by a back-face rib on the cone. These bearings are capable of taking high radial loads and axial loads in one direction. In the HR series, the rollers are increased in both size and number giving
NSK Four Row Taper Roller Bearings
NSKs Extra-Capacity Sealed-Clean Four Row Taper Roller Bearings offer higher load capacity; provide greater sealing performance; and adopt Super-TF and WTF material. Condition Description Contamination High Load Lubrication Industries Steel and Metal
NSK bearing units
The NSK bearing unit is a combination of a radial ball bearing, seal, and a housing of high-grade cast iron or pressed steel, which comes in various shapes. The outer surface of the bearing and the internal surface of the housing are spherical, so th
