NSK 22338CAME4C3S11 Spherical roller bearings | 190x400x132.
Also known as : 22338CAE4C3
- Inside Diameter: 190 mm
- Outside Diameter: 400 mm
- Width: 132 mm
- Basic dynamic load rating: 1890 kN
- Basic static load rating: 2590 kN
NSK 22338CAE4 Bearing
NSK 22338CAE4 Bearing details
| Bearing number | 22338CAME4C3S11 |
|---|---|
| Type | Spherical roller bearings |
| Brand | NSK |
| d | 190 mm |
| D | 400 mm |
| B | 132.0 mm |
| rmin. | 5.0 mm |
| Cr |
1890000 N 193000 kgf |
| C0r |
2590000 N 264000 kgf |
| Limiting speeds | 900 min-1 (Grease) |
| Limiting speeds | 1100 min-1 (Oil) |
| da min | 212 mm |
| da max | 0.000 mm |
| Da max | 378 mm |
| Da min | 338 mm |
| ra | 4.0 mm |
| Constant | 0.34 |
| Y2 | 2.9 Axial Load Factors |
| Y3 | 2 Axial Load Factors |
| Y0 | 1.9 Axial Load Factors |
| Mass | 78.10 kg (approx.) |
NSK 22338CAME4C3S11 roller bearings with Cylindrical Bore, spherical roller bearing, double-Row.
NSK 22338CAE4 bearing cross reference
FAG 22338-BE-XL bearing
190mm x 400mm x 132mm
NSK 22238CAE4 bearing
190mm x 340mm x 92.0mm
NSK 22238CAKE4 bearing
190mm x 340mm x 92.0mm
NSK 22338CAKE4 bearing
190mm x 400mm x 132.0mm
NSK 23038CAKE4 bearing
190mm x 290mm x 75.0mm
NSK 23038CAE4 bearing
190mm x 290mm x 75.0mm

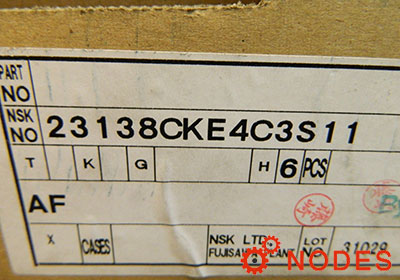

NSK 23138CKE4C3 bearing
