NSK HR32022XJ roller bearings | 110x170x38 mm
Also known as : 32022
- Inside Diameter: 110 mm
- Outside Diameter: 170 mm
- Width: 38 mm
- Basic dynamic load rating: 236 kN
- Basic static load rating: 390 kN
NSK HR32022XJ Bearing
NSK HR32022XJ Bearing details
| model | HR32022XJ |
|---|---|
| d | 110 mm |
| D | 170 mm |
| T | 38 mm |
| B | 38 mm |
| C | 29 mm |
| Cone rmin. | 2.5 mm |
| Cup rmin. | 2 mm |
| Cr |
236000 N 24000 kgf |
| C0r |
390000 N 40000 kgf |
| Limiting speeds |
2000 min-1 (Grease) |
| Limiting speeds |
2600 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
4DC |
| e | 0.43 (constant) |
| y1 | 1.4 (Axial Load Factors) |
| y0 | 0.77 (Axial Load Factors) |
| Mass | 3.09 kg (approx.) |
NSK HR32022XJ roller bearings, tapered roller bearing, Single-Row Metric Design.
NSK HR32022XJ bearing cross reference
FAG 32022-X-XL bearing
110mm x 170mm x 38mm
FAG 32022-X-XL-DF-A90-130 bearing
110mm x 170mm x 76mm
FAG 32022-X-XL-DF-A170-230 bearing
110mm x 170mm x 76mm
FAG 32022-X-XL-DF-A180-230 bearing
110mm x 170mm x 76mm
FAG 32022-X-XL-DF-A220-270 bearing
110mm x 170mm x 76mm

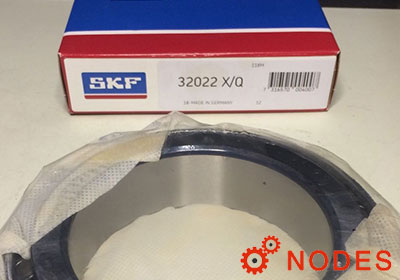

SKF 32022X bearing
110mm x 170mm x 38mm
NTN 32022XU bearing
110mm x 170mm x 38.0mm
NSK HR32922J bearing
110mm x 150mm x 25mm
NSK HR33022J bearing
110mm x 170mm x 47mm
NSK HR33122J bearing
110mm x 180mm x 56mm
NSK HR30222J bearing
110mm x 200mm x 41mm
