NSK HR32008XJ roller bearings | 40x68x19 mm
Also known as : 32008-X-XL
- Inside Diameter: 40 mm
- Outside Diameter: 68 mm
- Width: 19 mm
- Basic dynamic load rating: 53 kN
- Basic static load rating: 71 kN
NSK HR32008XJ Bearing
NSK HR32008XJ Bearing details
| model | HR32008XJ |
|---|---|
| d | 40 mm |
| D | 68 mm |
| T | 19 mm |
| B | 19 mm |
| C | 14.5 mm |
| Cone rmin. | 1 mm |
| Cup rmin. | 1 mm |
| Cr |
53000 N 5400 kgf |
| C0r |
71000 N 7250 kgf |
| Limiting speeds |
5300 min-1 (Grease) |
| Limiting speeds |
7100 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
3CD |
| e | 0.38 (constant) |
| y1 | 1.6 (Axial Load Factors) |
| y0 | 0.87 (Axial Load Factors) |
| Mass | 0.28 kg (approx.) |
NSK HR32008XJ roller bearings, tapered roller bearing, Single-Row Metric Design.
NSK HR32008XJ bearing cross reference

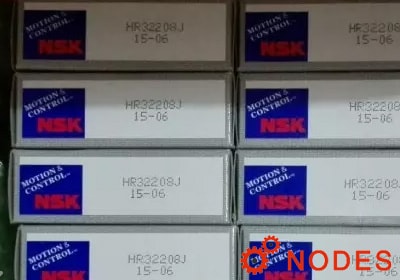

NSK HR32208J bearing
40mm x 80mm x 24.75mm

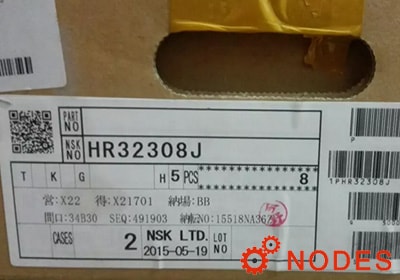

NSK HR32308J bearing
40mm x 90mm x 35.25mm

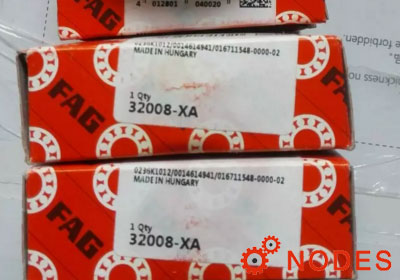

FAG 32008-XA bearing
40mm x 68mm x 19mm
FAG 32008-X-XL bearing
40mm x 68mm x 19mm
NTN 4T-32008X bearing
40mm x 68mm x 19.0mm
NSK HR32908J bearing
40mm x 62mm x 15mm
NSK HR33008J bearing
40mm x 68mm x 22mm
NSK HR33108J bearing
40mm x 75mm x 26mm
NSK HR32208J bearing
40mm x 80mm x 24.75mm
NSK HR33208J bearing
40mm x 80mm x 32mm
NSK HR30308C bearing
40mm x 90mm x 25.25mm
