IKO CRBC 4010, CRBC 4010 UU crossed roller bearings
Also known as : CRBC 4010
- Inside Diameter: 40 mm
- Outside Diameter: 65 mm
- Width: 10 mm
- Basic dynamic load rating: 4.28 kN
- Basic static load rating: 5.14 kN
IKO CRBC4010
IKO CRBC4010 Bearing details
| Identification number |
CRBC 4010, open type CRBC 4010 UU, sealed type |
|---|---|
| Type | IKO Standard Type Crossed Roller Bearings |
| Mass (Ref.) | 0.15 kg |

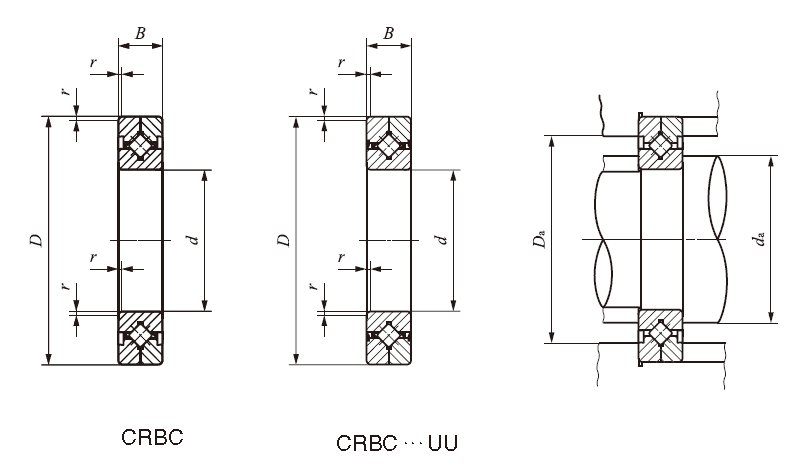

| Boundary dimensions | |
| d | 40 mm |
| D | 65 mm |
| B | 10 mm |
| r min | 0.3 mm |
| Mounting dimensions | |
| da | 44 mm |
| Da | 54 mm |
| C | 4.28 KN, Basic dynamic load rating |
| C0 | 5.14 KN, Basic static load rating |
As IKO bearings distributor, Nodes bearings has IKO CRBC 4010 and CRBC 4010 UU crossed roller bearings in stock.
CRBC 4010 is Open type with cage. CRBC 4010 UU is Sealed type with cage. The outer ring of CRBC 4010 bearing is made of two split pieces, which are bolted together to prevent separation during transportation or mounting. So, handling is easy.
