IKO BRI142620UU inch needle bearings
Also known as : BRI142620UU,
- Inside Diameter: 22.225 mm
- Outside Diameter: 41.275 mm
- Width: 31.75 mm
- Basic dynamic load rating: 34.9 kN
- Basic static load rating: 49.9 kN
IKO BRI142620UU needle bearing

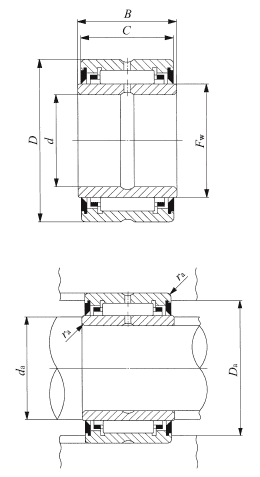

IKO BRI142620UU Bearing details
| model | BRI142620UU |
|---|---|
| d | 22.225 mm |
| D | 41.275 mm |
| C | 31.750 mm |
| B | 32.000 mm |
| Fw | 28.575 mm |
| rs max | 0.6 mm |
| da min | 27 mm |
| da max | 27.5 mm |
| Da max | 36.0 mm |
| C | 34900 N, Basic dynamic load rating |
| C0 | 49900 N, Basic static load rating |
| Allowable rotational speed | 7000 rpm |
| Assembled inner ring | LRBZ141820B |
| Mass | 177 g (approx.) |
Nodes bearings, IKO needle roller bearings wholesaler, have IKO BRI142620UU needle bearings in stock. machined type Needle roller bearings with inner ring, with seal, inch series.
