FAG 241SM530-MA Bearing

FAG 241SM530-MA split spherical roller bearings

Also known as : 241SM530-MA

  • Inside Diameter: 530 mm
  • Outside Diameter: 920 mm
  • Width: 355 mm
  • Basic dynamic load rating: 9100 kN
  • Basic static load rating: 19200 kN

Inquire Now


FAG 241SM530-MA Bearing

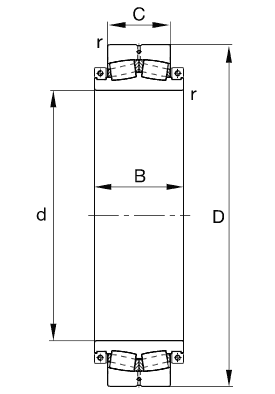

FAG 241SM530-MA Bearing details

Number 241SM530-MA
Type Split spherical roller bearings
split spherical roller bearings

d 530mm
D 920mm
C 355mm
B 500mm
rmin 7,5mm
m 1360kg Mass
Cr 9100000N Basic dynamic load rating, radial
C0r 19200000N Basic static load rating, radial
Cur 1400000N Fatigue limit load, radial
nG 1971/min Limiting speed
e 0,38
Y1 1,77
Y2 2,64
Y0 1,73
Fa max 217000N Permissible axial load, for inner ring without axial abutment
Mi 2000Nm Tightening torque per clamping screw
Ma 295Nm Tightening torque per clamping screw
  241/560K Designation, spherical roller bearing, unsplit
  H241/560-HG Designation, adapter sleeve

Nodes bearings have FAG 241SM530-MA bearings in stock. 241SM530-MA, split spherical roller bearings.

FAG 241SM530-MA bearing cross reference

FAG 230SM530-MA bearing
530mm x 820mm x 195mm
FAG 239SM530-MA bearing
530mm x 750mm x 140mm

FAG split spherical roller bearings
