Deep groove ball bearings

deep groove ball bearings

Nodes have a wide of deep groove ball bearings in stock. They are:
Brand: SKF, NSK, FAG, NTN
Single row deep groove ball bearings: 160, 60 618, 619, 62, 63, 64 series.
Double row deep groove ball bearings:42, 43 series.
Stainless steel deep groove ball bearings.

Deep groove ball bearings are particularly versatile. They are suitable for high and very high speeds, accommodate radial and axial loads in both directions.

Displaying 3668 deep groove ball bearings.

SKF 619/6-2Z single row deep groove ball bearings

SKF 619/6-2Z bearing, single row deep groove ball bearing, Shield on both sides, Dimensions: 6mm x 15mm x 5mm, Limiting Speeds:50000 r/min.

Brand: SKF
Inside Diameter: 6 mm
Outside Diameter: 15 mm
Width: 5 mm
Basic dynamic load rating: 0.884 kN
Basic static load rating: 0.884 kN

SKF 618/9 single row deep groove ball bearings

SKF 618/9 bearing, single row deep groove ball bearing, Dimensions: 9mm x 17mm x 4mm, Limiting Speeds:53000 r/min.

Brand: SKF
Inside Diameter: 9 mm
Outside Diameter: 17 mm
Width: 4 mm
Basic dynamic load rating: 0.871 kN
Basic static load rating: 0.871 kN

SKF 609-2Z single row deep groove ball bearings

SKF 609-2Z bearing, single row deep groove ball bearing, Shield on both sides, Dimensions: 9mm x 24mm x 7mm, Limiting Speeds:34000 r/min.

Brand: SKF
Inside Diameter: 9 mm
Outside Diameter: 24 mm
Width: 7 mm
Basic dynamic load rating: 3.9 kN
Basic static load rating: 3.9 kN

SKF 608-2RSH single row deep groove ball bearings

SKF 608-2RSH bearing, single row deep groove ball bearing, Contact seal, NBR, on both sides, Dimensions: 8mm x 22mm x 7mm, Limiting Speeds:22000 r/min.

Brand: SKF
Inside Diameter: 8 mm
Outside Diameter: 22 mm
Width: 7 mm
Basic dynamic load rating: 3.4 kN
Basic static load rating: 3.4 kN

SKF 608-2RSH/C3 single row deep groove ball bearings

SKF 608-2RSH/C3 bearing, single row deep groove ball bearing, Contact seal, NBR, on both sides, Dimensions: 8mm x 22mm x 7mm, Limiting Speeds:22000 r/min.

Brand: SKF
Inside Diameter: 8 mm
Outside Diameter: 22 mm
Width: 7 mm
Basic dynamic load rating: 3.4 kN
Basic static load rating: 3.4 kN

SKF 607-2Z single row deep groove ball bearings

SKF 607-2Z bearing, single row deep groove ball bearing, Shield on both sides, Dimensions: 7mm x 19mm x 6mm, Limiting Speeds:43000 r/min.

Brand: SKF
Inside Diameter: 7 mm
Outside Diameter: 19 mm
Width: 6 mm
Basic dynamic load rating: 2.3 kN
Basic static load rating: 2.3 kN

SKF 6002 single row deep groove ball bearings

SKF 6002 bearing, single row deep groove ball bearing, Dimensions: 15mm x 32mm x 9mm, Limiting Speeds:32000 r/min.

Brand: SKF
Inside Diameter: 15 mm
Outside Diameter: 32 mm
Width: 9 mm
Basic dynamic load rating: 5.85 kN
Basic static load rating: 5.85 kN

SKF 6006 single row deep groove ball bearings

SKF 6006 bearing, single row deep groove ball bearing, Dimensions: 30mm x 55mm x 13mm, Limiting Speeds:17000 r/min.

Brand: SKF
Inside Diameter: 30 mm
Outside Diameter: 55 mm
Width: 13 mm
Basic dynamic load rating: 13.8 kN
Basic static load rating: 13.8 kN

SKF 6008 single row deep groove ball bearings

SKF 6008 bearing, single row deep groove ball bearing, Dimensions: 40mm x 68mm x 15mm, Limiting Speeds:14000 r/min.

Brand: SKF
Inside Diameter: 40 mm
Outside Diameter: 68 mm
Width: 15 mm
Basic dynamic load rating: 17.8 kN
Basic static load rating: 17.8 kN

SKF 6009 single row deep groove ball bearings

SKF 6009 bearing, single row deep groove ball bearing, Dimensions: 45mm x 75mm x 16mm, Limiting Speeds:12000 r/min.

Brand: SKF
Inside Diameter: 45 mm
Outside Diameter: 75 mm
Width: 16 mm
Basic dynamic load rating: 22.1 kN
Basic static load rating: 22.1 kN

SKF 6011 single row deep groove ball bearings

SKF 6011 bearing, single row deep groove ball bearing, Dimensions: 55mm x 90mm x 18mm, Limiting Speeds:10000 r/min.

Brand: SKF
Inside Diameter: 55 mm
Outside Diameter: 90 mm
Width: 18 mm
Basic dynamic load rating: 29.6 kN
Basic static load rating: 29.6 kN

SKF 6016 single row deep groove ball bearings

SKF 6016 bearing, single row deep groove ball bearing, Dimensions: 80mm x 125mm x 22mm, Limiting Speeds:7000 r/min.

Brand: SKF
Inside Diameter: 80 mm
Outside Diameter: 125 mm
Width: 22 mm
Basic dynamic load rating: 49.4 kN
Basic static load rating: 49.4 kN

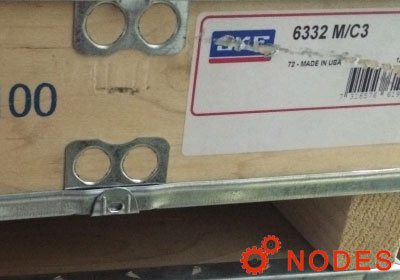

SKF 6332 single row deep groove ball bearings

SKF 6332 bearing, single row deep groove ball bearing, Dimensions: 160mm x 340mm x 68mm, Limiting Speeds:2600 r/min.

Brand: SKF
Inside Diameter: 160 mm
Outside Diameter: 340 mm
Width: 68 mm
Basic dynamic load rating: 276 kN
Basic static load rating: 276 kN

SKF 6222 single row deep groove ball bearings

SKF 6222 bearing, single row deep groove ball bearing, Dimensions: 110mm x 200mm x 38mm, Limiting Speeds:4300 r/min.

Brand: SKF
Inside Diameter: 110 mm
Outside Diameter: 200 mm
Width: 38 mm
Basic dynamic load rating: 151 kN
Basic static load rating: 151 kN

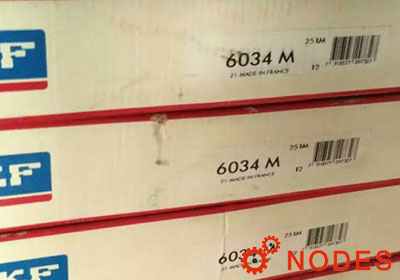

SKF 6034 single row deep groove ball bearings

SKF 6034 bearing, single row deep groove ball bearing, Dimensions: 170mm x 260mm x 42mm, Limiting Speeds:3200 r/min.

Brand: SKF
Inside Diameter: 170 mm
Outside Diameter: 260 mm
Width: 42 mm
Basic dynamic load rating: 168 kN
Basic static load rating: 168 kN

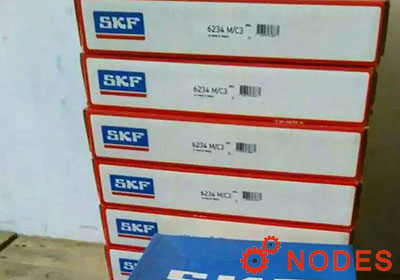

SKF 6234 single row deep groove ball bearings

SKF 6234 bearing, single row deep groove ball bearing, Dimensions: 170mm x 310mm x 52mm, Limiting Speeds:2800 r/min.

Brand: SKF
Inside Diameter: 170 mm
Outside Diameter: 310 mm
Width: 52 mm
Basic dynamic load rating: 212 kN
Basic static load rating: 212 kN

SKF 6018 single row deep groove ball bearings

SKF 6018 bearing, single row deep groove ball bearing, Dimensions: 90mm x 140mm x 24mm, Limiting Speeds:6300 r/min.

Brand: SKF
Inside Diameter: 90 mm
Outside Diameter: 140 mm
Width: 24 mm
Basic dynamic load rating: 60.5 kN
Basic static load rating: 60.5 kN

SKF 6022 single row deep groove ball bearings

SKF 6022 bearing, single row deep groove ball bearing, Dimensions: 110mm x 170mm x 28mm, Limiting Speeds:5000 r/min.

Brand: SKF
Inside Diameter: 110 mm
Outside Diameter: 170 mm
Width: 28 mm
Basic dynamic load rating: 85.2 kN
Basic static load rating: 85.2 kN

SKF 6209 single row deep groove ball bearings

SKF 6209 bearing, single row deep groove ball bearing, Dimensions: 45mm x 85mm x 19mm, Limiting Speeds:11000 r/min.

Brand: SKF
Inside Diameter: 45 mm
Outside Diameter: 85 mm
Width: 19 mm
Basic dynamic load rating: 35.1 kN
Basic static load rating: 35.1 kN

SKF 6211 single row deep groove ball bearings

SKF 6211 bearing, single row deep groove ball bearing, Dimensions: 55mm x 100mm x 21mm, Limiting Speeds:9000 r/min.

Brand: SKF
Inside Diameter: 55 mm
Outside Diameter: 100 mm
Width: 21 mm
Basic dynamic load rating: 46.2 kN
Basic static load rating: 46.2 kN

SKF 6212 single row deep groove ball bearings

SKF 6212 bearing, single row deep groove ball bearing, Dimensions: 60mm x 110mm x 22mm, Limiting Speeds:8000 r/min.

Brand: SKF
Inside Diameter: 60 mm
Outside Diameter: 110 mm
Width: 22 mm
Basic dynamic load rating: 55.3 kN
Basic static load rating: 55.3 kN

SKF 6215 single row deep groove ball bearings

SKF 6215 bearing, single row deep groove ball bearing, Dimensions: 75mm x 130mm x 25mm, Limiting Speeds:6700 r/min.

Brand: SKF
Inside Diameter: 75 mm
Outside Diameter: 130 mm
Width: 25 mm
Basic dynamic load rating: 68.9 kN
Basic static load rating: 68.9 kN

SKF 6218 single row deep groove ball bearings

SKF 6218 bearing, single row deep groove ball bearing, Dimensions: 90mm x 160mm x 30mm, Limiting Speeds:5300 r/min.

Brand: SKF
Inside Diameter: 90 mm
Outside Diameter: 160 mm
Width: 30 mm
Basic dynamic load rating: 101 kN
Basic static load rating: 101 kN

SKF 6311 single row deep groove ball bearings

SKF 6311 bearing, single row deep groove ball bearing, Dimensions: 55mm x 120mm x 29mm, Limiting Speeds:8000 r/min.

Brand: SKF
Inside Diameter: 55 mm
Outside Diameter: 120 mm
Width: 29 mm
Basic dynamic load rating: 74.1 kN
Basic static load rating: 74.1 kN

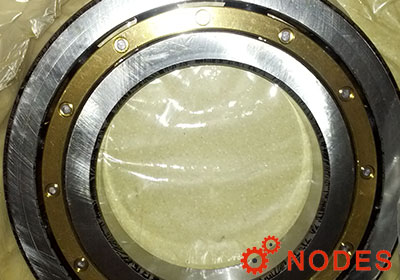

SKF 6240 M single row deep groove ball bearings

SKF 6240 M bearing, single row deep groove ball bearing, Dimensions: 200mm x 360mm x 58mm, Limiting Speeds:3200 r/min.

Brand: SKF
Inside Diameter: 200 mm
Outside Diameter: 360 mm
Width: 58 mm
Basic dynamic load rating: 270 kN
Basic static load rating: 270 kN

SKF 6300 single row deep groove ball bearings

SKF 6300 bearing, single row deep groove ball bearing, Dimensions: 10mm x 35mm x 11mm, Limiting Speeds:32000 r/min.

Brand: SKF
Inside Diameter: 10 mm
Outside Diameter: 35 mm
Width: 11 mm
Basic dynamic load rating: 8.52 kN
Basic static load rating: 8.52 kN

SKF 6301 single row deep groove ball bearings

SKF 6301 bearing, single row deep groove ball bearing, Dimensions: 12mm x 37mm x 12mm, Limiting Speeds:28000 r/min.

Brand: SKF
Inside Diameter: 12 mm
Outside Diameter: 37 mm
Width: 12 mm
Basic dynamic load rating: 10.1 kN
Basic static load rating: 10.1 kN

SKF 6305 single row deep groove ball bearings

SKF 6305 bearing, single row deep groove ball bearing, Dimensions: 25mm x 62mm x 17mm, Limiting Speeds:16000 r/min.

Brand: SKF
Inside Diameter: 25 mm
Outside Diameter: 62 mm
Width: 17 mm
Basic dynamic load rating: 23.4 kN
Basic static load rating: 23.4 kN

SKF 6306 single row deep groove ball bearings

SKF 6306 bearing, single row deep groove ball bearing, Dimensions: 30mm x 72mm x 19mm, Limiting Speeds:13000 r/min.

Brand: SKF
Inside Diameter: 30 mm
Outside Diameter: 72 mm
Width: 19 mm
Basic dynamic load rating: 29.6 kN
Basic static load rating: 29.6 kN

SKF 6307 M single row deep groove ball bearings

SKF 6307 M bearing, single row deep groove ball bearing, Dimensions: 35mm x 80mm x 21mm, Limiting Speeds:17000 r/min.

Brand: SKF
Inside Diameter: 35 mm
Outside Diameter: 80 mm
Width: 21 mm
Basic dynamic load rating: 35.1 kN
Basic static load rating: 35.1 kN

SKF 6308 single row deep groove ball bearings

SKF 6308 bearing, single row deep groove ball bearing, Dimensions: 40mm x 90mm x 23mm, Limiting Speeds:11000 r/min.

Brand: SKF
Inside Diameter: 40 mm
Outside Diameter: 90 mm
Width: 23 mm
Basic dynamic load rating: 42.3 kN
Basic static load rating: 42.3 kN

SKF 6309 single row deep groove ball bearings

SKF 6309 bearing, single row deep groove ball bearing, Dimensions: 45mm x 100mm x 25mm, Limiting Speeds:9500 r/min.

Brand: SKF
Inside Diameter: 45 mm
Outside Diameter: 100 mm
Width: 25 mm
Basic dynamic load rating: 55.3 kN
Basic static load rating: 55.3 kN

SKF 6312 single row deep groove ball bearings

SKF 6312 bearing, single row deep groove ball bearing, Dimensions: 60mm x 130mm x 31mm, Limiting Speeds:7000 r/min.

Brand: SKF
Inside Diameter: 60 mm
Outside Diameter: 130 mm
Width: 31 mm
Basic dynamic load rating: 85.2 kN
Basic static load rating: 85.2 kN

SKF 61821 single row deep groove ball bearings

SKF 61821 bearing, single row deep groove ball bearing, Dimensions: 105mm x 130mm x 13mm, Limiting Speeds:6300 r/min.

Brand: SKF
Inside Diameter: 105 mm
Outside Diameter: 130 mm
Width: 13 mm
Basic dynamic load rating: 20.8 kN
Basic static load rating: 20.8 kN

SKF 6313 single row deep groove ball bearings

SKF 6313 bearing, single row deep groove ball bearing, Dimensions: 65mm x 140mm x 33mm, Limiting Speeds:6700 r/min.

Brand: SKF
Inside Diameter: 65 mm
Outside Diameter: 140 mm
Width: 33 mm
Basic dynamic load rating: 97.5 kN
Basic static load rating: 97.5 kN

SKF 6316 single row deep groove ball bearings

SKF 6316 bearing, single row deep groove ball bearing, Dimensions: 80mm x 170mm x 39mm, Limiting Speeds:5300 r/min.

Brand: SKF
Inside Diameter: 80 mm
Outside Diameter: 170 mm
Width: 39 mm
Basic dynamic load rating: 130 kN
Basic static load rating: 130 kN

SKF 6317 single row deep groove ball bearings

SKF 6317 bearing, single row deep groove ball bearing, Dimensions: 85mm x 180mm x 41mm, Limiting Speeds:5000 r/min.

Brand: SKF
Inside Diameter: 85 mm
Outside Diameter: 180 mm
Width: 41 mm
Basic dynamic load rating: 140 kN
Basic static load rating: 140 kN

SKF 6318 single row deep groove ball bearings

SKF 6318 bearing, single row deep groove ball bearing, Dimensions: 90mm x 190mm x 43mm, Limiting Speeds:4800 r/min.

Brand: SKF
Inside Diameter: 90 mm
Outside Diameter: 190 mm
Width: 43 mm
Basic dynamic load rating: 151 kN
Basic static load rating: 151 kN
