FAG 3204-BD-XL-2HRS-TVH Bearing

3204-BD-XL-2HRS-TVH FAG angular contact ball bearings

Also known as : 3204A-2RS1ATN9

• Inside Diameter: 20 mm
• Outside Diameter: 47 mm
• Width: 20.6 mm
• Basic dynamic load rating: 20.6 kN
• Basic static load rating: 12.9 kN

Inquire Now

FAG 3204-BD-XL-2HRS-TVH Bearing

3204-BD-XL-2HRS-TVH FAG

Part Number	3204-BD-2HRS-TVH
Brand	INA
Description	Angular contact ball bearing 32..-BD-XL-2HRS-TVH, double row, X-life, seals, plastic cage
Lubricant	G14	Ball bearing grease, low noise, standard for D<=62mm
Sealing	2HRS	Contact seal on both sides
Cage	TVH	solid cage made of glass-fiber reinforced polyamid PA66
Tolerance class	P6	Class6 (P6), better than PN
Axial internal clearance	CN	Group N (CN)
Design variant	BD	Design variant BD

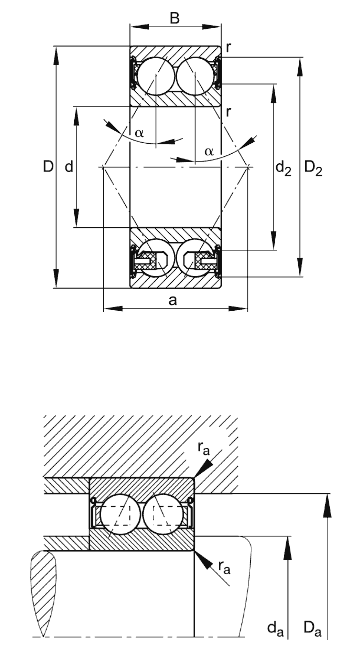

Main Dimensions & Performance Data
d	20 mm	Bore diameter
D	47 mm	Outside diameter
B	20.6 mm	Width
Cr	20600 N	Basic dynamic load rating, radial
C0r	12900 N	Basic static load rating, radial
Cur	900 N	Fatigue load limit, radial
nG	12100 1/min	Limiting speed
m	0.15 kg	Weight
Mounting dimensions
da min	25.6 mm	Minimum diameter shaft shoulder
Da max	41.4 mm	Maximum diameter of housing shoulder
ra max	1 mm	Maximum fillet radius
Dimensions
r min	1 mm	Minimum chamfer dimension
D2	42.2 mm	Caliber diameter outer ring
d2	29.2 mm	Caliber diamter inner ring
a	27.9 mm	Distance between the apexes of the pressure cones
α	30 °	Contact angle
