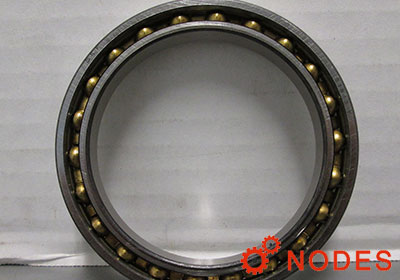

FAG 61813-Y Bearing

FAG 61813-Y bearings

Also known as : 61813-Y

  • Inside Diameter: 65 mm
  • Outside Diameter: 85 mm
  • Width: 10 mm
  • Basic dynamic load rating: 13 kN
  • Basic static load rating: 12 kN

Inquire Now


FAG 61813-Y Bearing

FAG 61813-Y Bearing details

d 65 mm
D 85 mm
B 10 mm
D1 78,6 mm
Da max 81,8 mm
d1 71,6 mm
da min 68,2 mm
ra max 0,6 mm
rmin 0,6 mm
m 0,136 kg  Mass
Cr 13000 N  Basic dynamic load rating, radial
C0r 12000 N  Basic static load rating, radial
Cur 760 N  Fatigue limit load, radial
nG 14700 1/min  Limiting speed
nB 5700 1/min  Reference speed
f0 16,2  Calculation factor

As FAG bearing distributor, Nodes bearings have FAG 61813-Y deep groove ball bearings in stock, main dimensions to DIN 625-1.

FAG 61813-Y bearing cross reference

NSK 6813 bearing
65mm x 85mm x 10mm
NSK 6813ZZ bearing
65mm x 85mm x 10mm
NSK 6813VV bearing
65mm x 85mm x 10mm
SKF 61813 bearing
65mm x 85mm x 10mm
FAG 16013 bearing
65mm x 100mm x 11mm
FAG 16013-MA bearing
65mm x 100mm x 11mm
FAG 6013-C3 bearing
65mm x 100mm x 18mm
FAG 6013-M bearing
65mm x 100mm x 18mm
FAG 6013-M-J20AA bearing
65mm x 100mm x 18mm
FAG 61913 bearing
65mm x 90mm x 13mm
FAG 6213 bearing
65mm x 120mm x 23mm
FAG 6213-J20AB bearing
65mm x 120mm x 23mm
