FAG 61901-2RSR Bearing

FAG 61901-2RSR bearings

Also known as : 61901-2RSR

  • Inside Diameter: 12 mm
  • Outside Diameter: 24 mm
  • Width: 6 mm
  • Basic dynamic load rating: 3.05 kN
  • Basic static load rating: 1.46 kN

Inquire Now


FAG 61901-2RSR Bearing

FAG 61901-2RSR Bearing details

d 12 mm
D 24 mm
B 6 mm
D2 21,4 mm
Da max 22 mm
d2 15,4 mm
da min 14 mm
ra max 0,3 mm
rmin 0,3 mm
m 0,012 kg  Mass
Cr 3050 N  Basic dynamic load rating, radial
C0r 1460 N  Basic static load rating, radial
Cur 75 N  Fatigue limit load, radial
nG 16700 1/min  Limiting speed
f0 14,5  Calculation factor

As FAG bearing distributor, Nodes bearings have FAG 61901-2RSR deep groove ball bearings in stock, main dimensions to DIN 625-1, lip seals on both sides.

FAG 61901-2RSR bearing cross reference

NSK 6901ZZ bearing
12mm x 24mm x 6mm
NSK 6901 bearing
12mm x 24mm x 6mm
NSK 6901VV bearing
12mm x 24mm x 6mm
FAG 6001 bearing
12mm x 28mm x 8mm
FAG 61801 bearing
12mm x 21mm x 5mm
FAG 61901 bearing
12mm x 24mm x 6mm
FAG 6201 bearing
12mm x 32mm x 10mm
FAG 6301 bearing
12mm x 37mm x 12mm
FAG 6001-2RSR bearing
12mm x 28mm x 8mm
FAG 61801-2RSR bearing
12mm x 21mm x 5mm

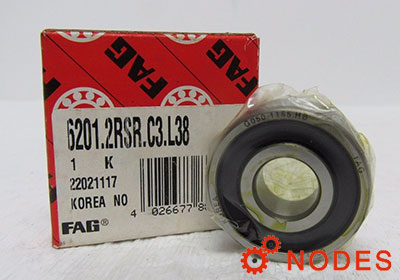

FAG 6201-2RSR-C3 bearing
12mm x 32mm x 10mm
FAG 62201-2RSR bearing
12mm x 32mm x 14mm
