FAG 7302-B-XL-2RS-TVP Bearing

FAG 7302-B-XL-2RS-TVP bearings | Dimensions: 15x42x13mm

Also known as : 7302-B-XL-2RS-TVP

  • Inside Diameter: 15 mm
  • Outside Diameter: 42 mm
  • Width: 13 mm
  • Basic dynamic load rating: 14.2 kN
  • Basic static load rating: 7.2 kN

Inquire Now

FAG 7302-B-XL-2RS-TVP Bearing

FAG 7302-B-XL-2RS-TVP Bearing details

Number 7302-B-XL-2RS-TVP
Type Angular contact ball bearings
main dimensions to DIN 628-1, contact angle α = 40°, lip seals on both sides

d 15mm
D 42mm
B 13mm
a 18mm
D1 31,7mm
D2 33,3mm
D3 38,1mm
Da max 36,4mm
Db max 37,8mm
d2 22,9mm
da min 20,6mm
r1 min 0,6mm
ra max 1mm
ra1 max 0,6mm
rmin 1mm
α 40° Contact angle
m 0,082kg Mass
Cr 14200N Basic dynamic load rating, radial
C0r 7200N Basic static load rating, radial
Cur 485N Fatigue limit load, radial
nG 111001/min Limiting speed

Nodes bearings have FAG 7302-B-XL-2RS-TVP bearings in stock, FAG bearings, main dimensions to DIN 628-1, contact angle α = 40°, lip seals on both sides.

related articles

FAG 7302-B-XL-2RS-TVP bearing cross reference

FAG 7202-B-XL-JP bearing
15mm x 35mm x 11mm
FAG 7202-B-TVP-UO bearing
15mm x 35mm x 11mm
FAG 7302-B-XL-JP bearing
15mm x 42mm x 13mm
FAG 7302-B-XL-MP bearing
15mm x 42mm x 13mm
FAG 7302-B-XL-TVP bearing
15mm x 42mm x 13mm
FAG 7202-B-TVP-UA bearing
15mm x 35mm x 11mm

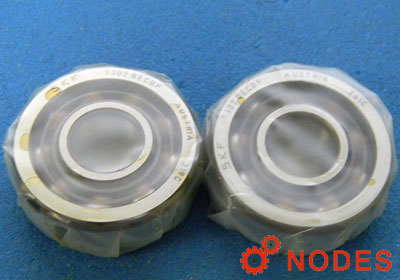

SKF 7302 BECBP bearing
