FAG NN3012-D-K-TVP-SP-XL Bearing

FAG NN3012-D-K-TVP-SP-XL Super precision cylindrical roller

Also known as : NN3012-D-K-TVP-SP-XL

  • Inside Diameter: 60 mm
  • Outside Diameter: 95 mm
  • Width: 26 mm
  • Basic dynamic load rating: 87 kN
  • Basic static load rating: 106 kN

Inquire Now

FAG NN3012-D-K-TVP-SP-XL Bearing

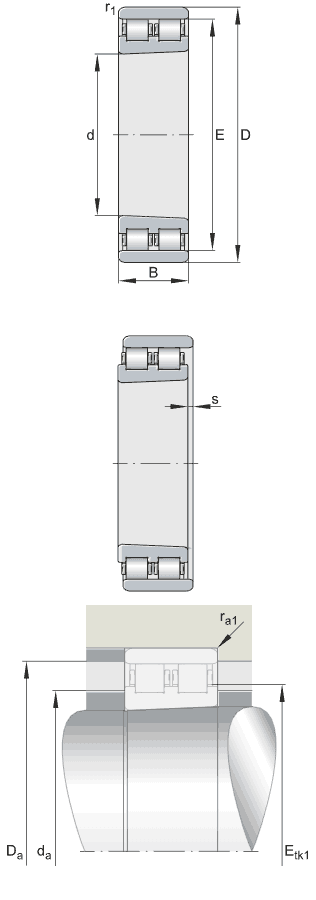

FAG NN3012-D-K-TVP-SP-XL Bearing details

Number NN3012-D-K-TVP-SP-XL
Type Super precision cylindrical roller bearings
Non-locating bearing, double row, with tapered bore, taper 1:12, separable, with cage

d 60mm
D 95mm
B 26mm
Da max 88mm Tolerance: H12
da min 70,1mm Tolerance: h12
E 86,1mm
r1 min 1,1mm
ra1 max 1mm
s 1,9mm Axial displacement facility from central position
m 0,63kg ≈ Mass
Cr 87000N Basic dynamic load rating, radial
C0r 106000N Basic static load rating, radial
Cur 17100N Fatigue limit load, radial
nG Fett 113001/min Limiting speed for grease lubrication
nG Öl 133001/min Limiting speed for minimal quantity oil lubrication

Nodes bearings have FAG NN3012-D-K-TVP-SP-XL bearings in stock, FAG bearings, Non-locating bearing, double row, with tapered bore, taper 1:12, separable, with cage.
