23140-BE-XL FAG spherical roller bearings
Also known as : 23140-E1, 23140E
- Inside Diameter: 200 mm
- Outside Diameter: 340 mm
- Width: 112 mm
- Basic dynamic load rating: 1610 kN
- Basic static load rating: 2270 kN
FAG 23140-BE-XL Bearing

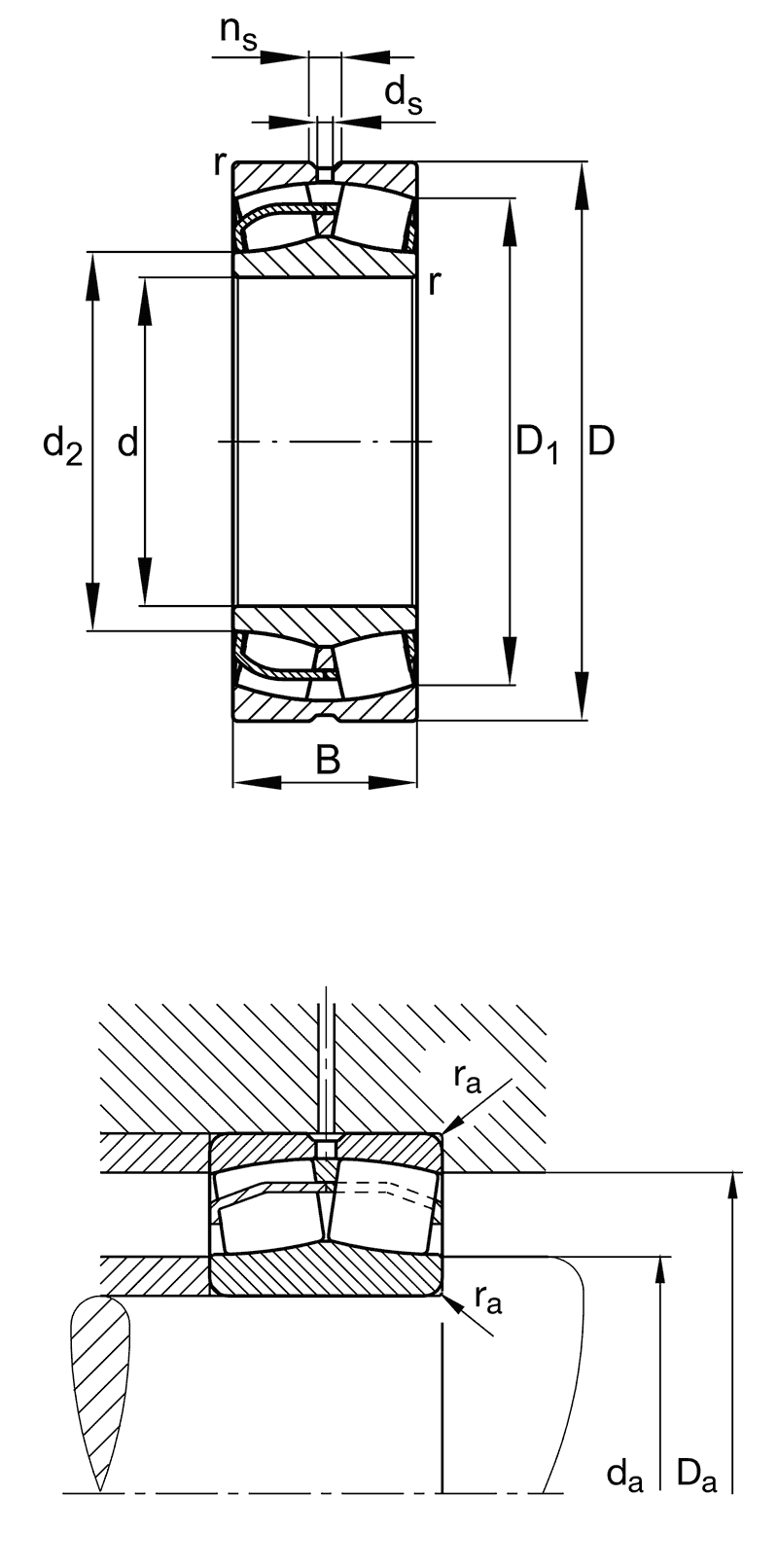

FAG 23140-BE-XL Bearing details
| PN | 23140-BE-XL |
|---|---|
| d | 200 mm |
| D | 340 mm |
| B | 112 mm |
| D1 | 295.8 mm |
| Da max | 326 mm |
| d2 | 230.4 mm |
| da min | 214 mm |
| ra max | 2.5 mm |
| rmin | 3 mm |
| Cr | 1610000 N |
| C0r | 2270000 N |
| Limiting speed | 2040 1/min |
| Reference speed | 1230 1/min |
| Cur | 193000 N Fatigue limit load, radial |
| e | 0.32 |
| Y1 | 2.1 |
| Y2 | 3.13 |
| Y0 | 2.06 |
| mass | 40.28 kg |
23140-BE-XL, FAG spherical roller bearing, 231..-BE-XL, symmetric with rib washer.
