IKO CRBF 5515 AT, CRBF 5515 ATUU crossed roller bearings
Also known as : CRBF 5515 AT
- Inside Diameter: 55 mm
- Outside Diameter: 120 mm
- Width: 15 mm
- Basic dynamic load rating: 20.1 kN
- Basic static load rating: 27.7 kN
IKO CRBF 5515 AT
IKO CRBF 5515 AT Bearing details
| Identification number |
CRBF 5515 AT, open type CRBF 5515 ATUU, sealed type |
|---|---|
| Type | IKO Mounting Holed Type High Rigidity Crossed Roller Bearings |
| Mass (Ref.) | 0.96 kg |

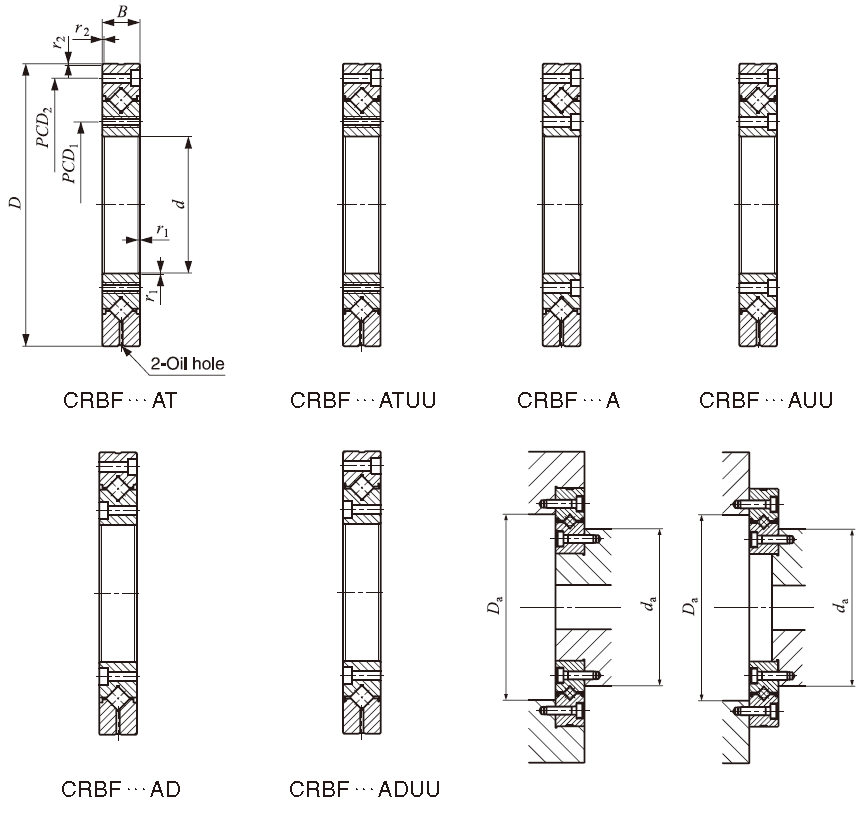

| Boundary dimensions | |
| d | 55 mm |
| D | 120 mm |
| B | 15 mm |
| r 1 min | 0.6 mm |
| r 2 min | 0.6 mm |
| Mounting holes | |
| PCD1 | 65 mm |
| Inner ring Mounting holes | 8-M5 through |
| PCD2 | 105 mm |
| Outer ring Mounting holes |
8-φ5.5 through φ9.5 counter bore depth 5.4 mm |
| Mounting dimensions | |
| da | 76 mm |
| Da | 94 mm |
| C | 20.1 KN, Basic dynamic load rating |
| C0 | 27.7 KN, Basic static load rating |
As IKO bearings distributor, Nodes bearings has IKO CRBF 5515 AT and CRBF 5515 ATUU crossed roller bearings in stock.
CRBF 5515 AT is Open type with separator. CRBF 5515 ATUU is Sealed type with separator. Mounting holes are prepared on outer ring and inner ring providing easy mounting together with high rigidity and high accuracy.
