IKO crossed roller bearings

IKO crossed roller bearings

IKO Crossed Roller Bearings are compact bearings with their rollers alternately crossed at right angles to each other between inner and outer rings. They can take loads from any directions at the same time such as radial, thrust and moment loads. The rollers make line-contact with raceway surfaces, and, therefore, elastic deformation due to bearing loads is very small. These bearings are widely used in the rotating parts of industrial robots, machine tools, medical equipment, etc., which require compactness, high rigidity and high rotational accuracy.

Displaying 79 IKO crossed roller bearings.
IKO CRBH 258 A, CRBH 258 AUU crossed roller bearings IKO

IKO CRBH 258 A, CRBH 258 AUU crossed roller bearings

Nodes bearings has IKO CRBH 258 A and CRBH 258 AUU crossed roller bearings in stock, dimensions: 25mm x 41mm x 8mm, C: 3.12 KN, C0: 2.81 KN.

Inquire Now

  • Brand: IKO
  • Inside Diameter: 25 mm
  • Outside Diameter: 41 mm
  • Width: 8 mm
  • Basic dynamic load rating: 3.12 kN
  • Basic static load rating: 3.12 kN
IKO CRBH 3010 A, CRBH 3010 AUU crossed roller bearings IKO

IKO CRBH 3010 A, CRBH 3010 AUU crossed roller bearings

Nodes bearings has IKO CRBH 3010 A and CRBH 3010 AUU crossed roller bearings in stock, dimensions: 30mm x 55mm x 10mm, C: 7.6 KN, C0: 8.37 KN.

Inquire Now

  • Brand: IKO
  • Inside Diameter: 30 mm
  • Outside Diameter: 55 mm
  • Width: 10 mm
  • Basic dynamic load rating: 7.6 kN
  • Basic static load rating: 7.6 kN
IKO CRBH 4010 A, CRBH 4010 AUU crossed roller bearings IKO

IKO CRBH 4010 A, CRBH 4010 AUU crossed roller bearings

Nodes bearings has IKO CRBH 4010 A and CRBH 4010 AUU crossed roller bearings in stock, dimensions: 40mm x 65mm x 10mm, C: 8.61 KN, C0: 10.6 KN.

Inquire Now

  • Brand: IKO
  • Inside Diameter: 40 mm
  • Outside Diameter: 65 mm
  • Width: 10 mm
  • Basic dynamic load rating: 8.61 kN
  • Basic static load rating: 8.61 kN
IKO CRBH 4510 A, CRBH 4510 AUU crossed roller bearings IKO

IKO CRBH 4510 A, CRBH 4510 AUU crossed roller bearings

Nodes bearings has IKO CRBH 4510 A and CRBH 4510 AUU crossed roller bearings in stock, dimensions: 45mm x 70mm x 10mm, C: 8.86 KN, C0: 11.3 KN.

Inquire Now

  • Brand: IKO
  • Inside Diameter: 45 mm
  • Outside Diameter: 70 mm
  • Width: 10 mm
  • Basic dynamic load rating: 8.86 kN
  • Basic static load rating: 8.86 kN

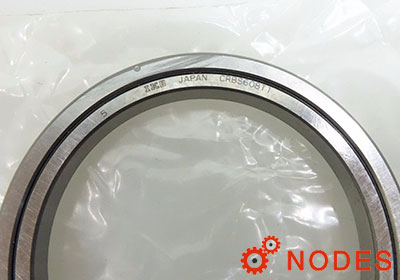

IKO CRBS 608, CRBS 608 AUU crossed roller bearings IKO

IKO CRBS 608, CRBS 608 AUU crossed roller bearings

Nodes bearings has IKO CRBS 608 and CRBS 608 AUU crossed roller bearings in stock, dimensions: 60mm x 76mm x 8mm, C: 5.35 KN, C0: 7.31 KN.

Inquire Now

  • Brand: IKO
  • Inside Diameter: 60 mm
  • Outside Diameter: 76 mm
  • Width: 8 mm
  • Basic dynamic load rating: 5.35 kN
  • Basic static load rating: 5.35 kN

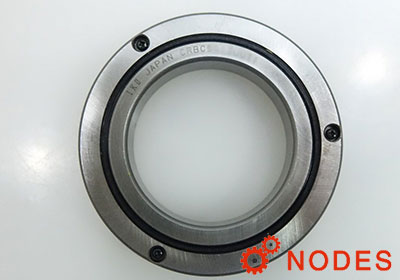

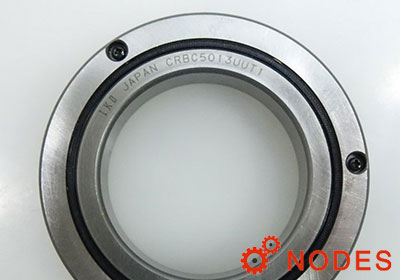

IKO CRBC 5013, CRBC 5013 UU crossed roller bearings IKO

IKO CRBC 5013, CRBC 5013 UU crossed roller bearings

Nodes bearings has IKO CRBC 5013 and CRBC 5013 UU crossed roller bearings in stock, dimensions: 50mm x 80mm x 13mm, C: 10.7 KN, C0: 12.6 KN.

Inquire Now

  • Brand: IKO
  • Inside Diameter: 50 mm
  • Outside Diameter: 80 mm
  • Width: 13 mm
  • Basic dynamic load rating: 10.7 kN
  • Basic static load rating: 10.7 kN

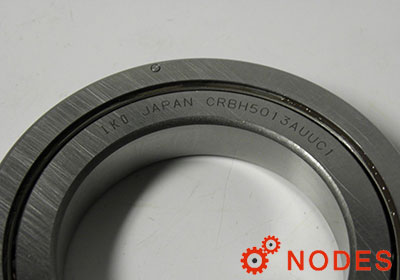

IKO CRBH 5013 A, CRBH 5013 AUU crossed roller bearings IKO

IKO CRBH 5013 A, CRBH 5013 AUU crossed roller bearings

Nodes bearings has IKO CRBH 5013 A and CRBH 5013 AUU crossed roller bearings in stock, dimensions: 50mm x 80mm x 13mm, C: 17.3 KN, C0: 20.9 KN.

Inquire Now

  • Brand: IKO
  • Inside Diameter: 50 mm
  • Outside Diameter: 80 mm
  • Width: 13 mm
  • Basic dynamic load rating: 17.3 kN
  • Basic static load rating: 17.3 kN

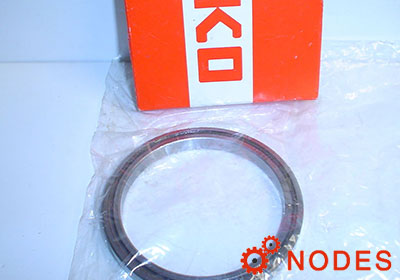

IKO CRBS 708, CRBS 708 AUU crossed roller bearings IKO

IKO CRBS 708, CRBS 708 AUU crossed roller bearings

Nodes bearings has IKO CRBS 708 and CRBS 708 AUU crossed roller bearings in stock, dimensions: 70mm x 86mm x 8mm, C: 5.74 KN, C0: 8.44 KN.

Inquire Now

  • Brand: IKO
  • Inside Diameter: 70 mm
  • Outside Diameter: 86 mm
  • Width: 8 mm
  • Basic dynamic load rating: 5.74 kN
  • Basic static load rating: 5.74 kN

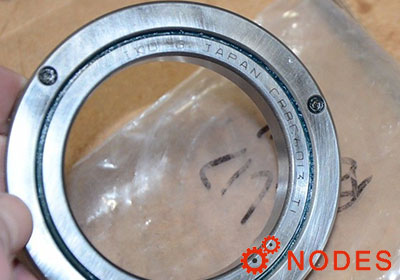

IKO CRBC 6013, CRBC 6013 UU crossed roller bearings IKO

IKO CRBC 6013, CRBC 6013 UU crossed roller bearings

Nodes bearings has IKO CRBC 6013 and CRBC 6013 UU crossed roller bearings in stock, dimensions: 60mm x 90mm x 13mm, C: 11.6 KN, C0: 14.6 KN.

Inquire Now

  • Brand: IKO
  • Inside Diameter: 60 mm
  • Outside Diameter: 90 mm
  • Width: 13 mm
  • Basic dynamic load rating: 11.6 kN
  • Basic static load rating: 11.6 kN

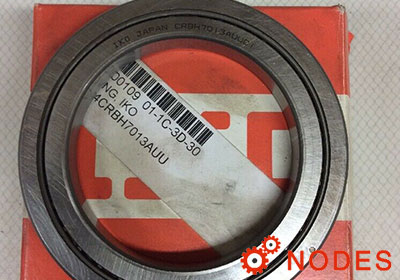

IKO CRBH 7013 A, CRBH 7013 AUU crossed roller bearings IKO

IKO CRBH 7013 A, CRBH 7013 AUU crossed roller bearings

Nodes bearings has IKO CRBH 7013 A and CRBH 7013 AUU crossed roller bearings in stock, dimensions: 70mm x 100mm x 13mm, C: 20.1 KN, C0: 27.7 KN.

Inquire Now

  • Brand: IKO
  • Inside Diameter: 70 mm
  • Outside Diameter: 100 mm
  • Width: 13 mm
  • Basic dynamic load rating: 20.1 kN
  • Basic static load rating: 20.1 kN

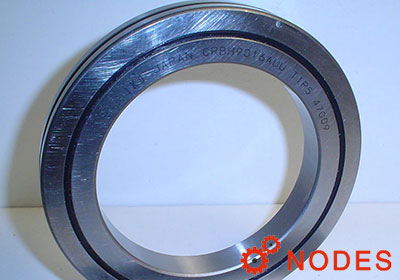

IKO CRBH 9016 A, CRBH 9016 AUU crossed roller bearings IKO

IKO CRBH 9016 A, CRBH 9016 AUU crossed roller bearings

Nodes bearings has IKO CRBH 9016 A and CRBH 9016 AUU crossed roller bearings in stock, dimensions: 90mm x 130mm x 16mm, C: 33.1 KN, C0: 46.8 KN.

Inquire Now

  • Brand: IKO
  • Inside Diameter: 90 mm
  • Outside Diameter: 130 mm
  • Width: 16 mm
  • Basic dynamic load rating: 33.1 kN
  • Basic static load rating: 33.1 kN

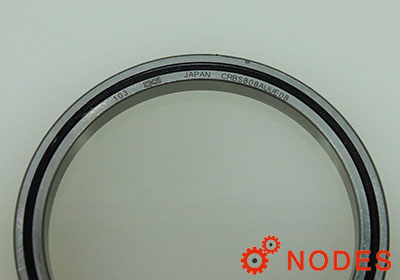

IKO CRBS 808, CRBS 808 AUU crossed roller bearings IKO

IKO CRBS 808, CRBS 808 AUU crossed roller bearings

Nodes bearings has IKO CRBS 808 and CRBS 808 AUU crossed roller bearings in stock, dimensions: 80mm x 96mm x 8mm, C: 6.13 KN, C0: 9.59 KN.

Inquire Now

  • Brand: IKO
  • Inside Diameter: 80 mm
  • Outside Diameter: 96 mm
  • Width: 8 mm
  • Basic dynamic load rating: 6.13 kN
  • Basic static load rating: 6.13 kN

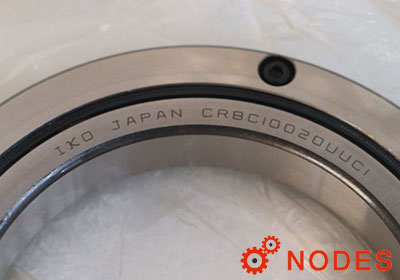

IKO CRBC 10020, CRBC 10020 UU crossed roller bearings IKO

IKO CRBC 10020, CRBC 10020 UU crossed roller bearings

Nodes bearings has IKO CRBC 10020 and CRBC 10020 UU crossed roller bearings in stock, dimensions: 100mm x 150mm x 20mm, C: 31.5 KN, C0: 45.1 KN.

Inquire Now

  • Brand: IKO
  • Inside Diameter: 100 mm
  • Outside Diameter: 150 mm
  • Width: 20 mm
  • Basic dynamic load rating: 31.5 kN
  • Basic static load rating: 31.5 kN

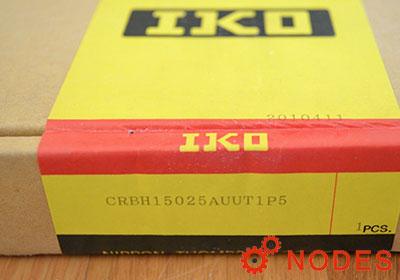

IKO CRBH 15025 A, CRBH 15025 AUU crossed roller bearings IKO

IKO CRBH 15025 A, CRBH 15025 AUU crossed roller bearings

Nodes bearings has IKO CRBH 15025 A and CRBH 15025 AUU crossed roller bearings in stock, dimensions: 150mm x 210mm x 25mm, C: 84.3 KN, C0: 138 KN.

Inquire Now

  • Brand: IKO
  • Inside Diameter: 150 mm
  • Outside Diameter: 210 mm
  • Width: 25 mm
  • Basic dynamic load rating: 84.3 kN
  • Basic static load rating: 84.3 kN

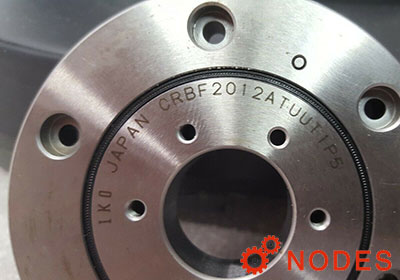

IKO CRBF 2012 AT, CRBF 2012 ATUU crossed roller bearings IKO

IKO CRBF 2012 AT, CRBF 2012 ATUU crossed roller bearings

Nodes bearings has IKO CRBF 2012 AT and CRBF 2012 ATUU crossed roller bearings in stock, dimensions: 20mm x 70mm x 12mm, C: 7.6 KN, C0: 8.37 KN.

Inquire Now

  • Brand: IKO
  • Inside Diameter: 20 mm
  • Outside Diameter: 70 mm
  • Width: 12 mm
  • Basic dynamic load rating: 7.6 kN
  • Basic static load rating: 7.6 kN

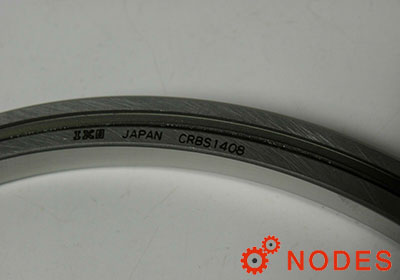

IKO CRBS 1408, CRBS 1408 AUU crossed roller bearings IKO

IKO CRBS 1408, CRBS 1408 AUU crossed roller bearings

Nodes bearings has IKO CRBS 1408 and CRBS 1408 AUU crossed roller bearings in stock, dimensions: 140mm x 156mm x 8mm, C: 8.06 KN, C0: 16.4 KN.

Inquire Now

  • Brand: IKO
  • Inside Diameter: 140 mm
  • Outside Diameter: 156 mm
  • Width: 8 mm
  • Basic dynamic load rating: 8.06 kN
  • Basic static load rating: 8.06 kN

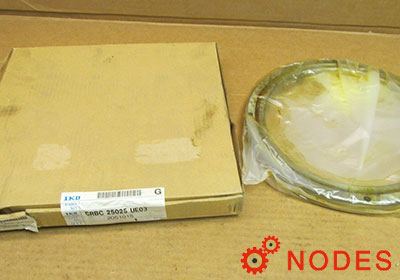

IKO CRBC 25025, CRBC 25025 UU crossed roller bearings IKO

IKO CRBC 25025, CRBC 25025 UU crossed roller bearings

Nodes bearings has IKO CRBC 25025 and CRBC 25025 UU crossed roller bearings in stock, dimensions: 250mm x 310mm x 25mm, C: 67.2 KN, C0: 136 KN.

Inquire Now

  • Brand: IKO
  • Inside Diameter: 250 mm
  • Outside Diameter: 310 mm
  • Width: 25 mm
  • Basic dynamic load rating: 67.2 kN
  • Basic static load rating: 67.2 kN

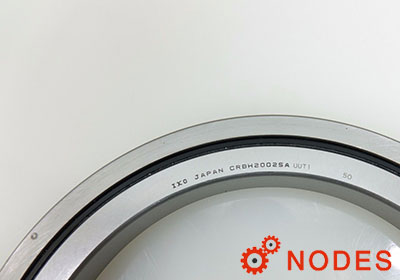

IKO CRBH 20025 A, CRBH 20025 AUU crossed roller bearings IKO

IKO CRBH 20025 A, CRBH 20025 AUU crossed roller bearings

Nodes bearings has IKO CRBH 20025 A and CRBH 20025 AUU crossed roller bearings in stock, dimensions: 200mm x 260mm x 25mm, C: 92.3 KN, C0: 169 KN.

Inquire Now

  • Brand: IKO
  • Inside Diameter: 200 mm
  • Outside Diameter: 260 mm
  • Width: 25 mm
  • Basic dynamic load rating: 92.3 kN
  • Basic static load rating: 92.3 kN

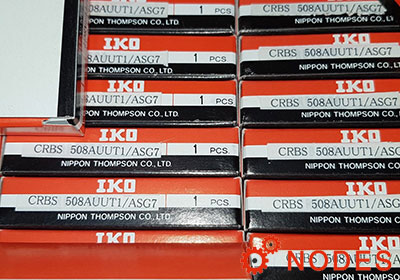

IKO CRBS 508, CRBS 508 AUU crossed roller bearings IKO

IKO CRBS 508, CRBS 508 AUU crossed roller bearings

Nodes bearings has IKO CRBS 508 and CRBS 508 AUU crossed roller bearings in stock, dimensions: 50mm x 66mm x 8mm, C: 4.9 KN, C0: 6.17 KN.

Inquire Now

  • Brand: IKO
  • Inside Diameter: 50 mm
  • Outside Diameter: 66 mm
  • Width: 8 mm
  • Basic dynamic load rating: 4.9 kN
  • Basic static load rating: 4.9 kN
IKO CRBC 3010, CRBC 3010 UU crossed roller bearings IKO

IKO CRBC 3010, CRBC 3010 UU crossed roller bearings

Nodes bearings has IKO CRBC 3010 and CRBC 3010 UU crossed roller bearings in stock, dimensions: 30mm x 55mm x 10mm, C: 3.83 KN, C0: 4.13 KN.

Inquire Now

  • Brand: IKO
  • Inside Diameter: 30 mm
  • Outside Diameter: 55 mm
  • Width: 10 mm
  • Basic dynamic load rating: 3.83 kN
  • Basic static load rating: 3.83 kN
IKO CRBC 4010, CRBC 4010 UU crossed roller bearings IKO

IKO CRBC 4010, CRBC 4010 UU crossed roller bearings

Nodes bearings has IKO CRBC 4010 and CRBC 4010 UU crossed roller bearings in stock, dimensions: 40mm x 65mm x 10mm, C: 4.28 KN, C0: 5.14 KN.

Inquire Now

  • Brand: IKO
  • Inside Diameter: 40 mm
  • Outside Diameter: 65 mm
  • Width: 10 mm
  • Basic dynamic load rating: 4.28 kN
  • Basic static load rating: 4.28 kN
IKO CRBC 7013, CRBC 7013 UU crossed roller bearings IKO

IKO CRBC 7013, CRBC 7013 UU crossed roller bearings

Nodes bearings has IKO CRBC 7013 and CRBC 7013 UU crossed roller bearings in stock, dimensions: 70mm x 100mm x 13mm, C: 12.3 KN, C0: 16.7 KN.

Inquire Now

  • Brand: IKO
  • Inside Diameter: 70 mm
  • Outside Diameter: 100 mm
  • Width: 13 mm
  • Basic dynamic load rating: 12.3 kN
  • Basic static load rating: 12.3 kN
IKO CRBC 8016, CRBC 8016 UU crossed roller bearings IKO

IKO CRBC 8016, CRBC 8016 UU crossed roller bearings

Nodes bearings has IKO CRBC 8016 and CRBC 8016 UU crossed roller bearings in stock, dimensions: 80mm x 120mm x 16mm, C: 18.2 KN, C0: 25.5 KN.

Inquire Now

  • Brand: IKO
  • Inside Diameter: 80 mm
  • Outside Diameter: 120 mm
  • Width: 16 mm
  • Basic dynamic load rating: 18.2 kN
  • Basic static load rating: 18.2 kN
IKO CRBC 9016, CRBC 9016 UU crossed roller bearings IKO

IKO CRBC 9016, CRBC 9016 UU crossed roller bearings

Nodes bearings has IKO CRBC 9016 and CRBC 9016 UU crossed roller bearings in stock, dimensions: 90mm x 130mm x 16mm, C: 19.4 KN, C0: 28.6 KN.

Inquire Now

  • Brand: IKO
  • Inside Diameter: 90 mm
  • Outside Diameter: 130 mm
  • Width: 16 mm
  • Basic dynamic load rating: 19.4 kN
  • Basic static load rating: 19.4 kN
IKO CRBC 11020, CRBC 11020 UU crossed roller bearings IKO

IKO CRBC 11020, CRBC 11020 UU crossed roller bearings

Nodes bearings has IKO CRBC 11020 and CRBC 11020 UU crossed roller bearings in stock, dimensions: 110mm x 160mm x 20mm, C: 33.5 KN, C0: 50.7 KN.

Inquire Now

  • Brand: IKO
  • Inside Diameter: 110 mm
  • Outside Diameter: 160 mm
  • Width: 20 mm
  • Basic dynamic load rating: 33.5 kN
  • Basic static load rating: 33.5 kN
IKO CRBC 12025, CRBC 12025 UU crossed roller bearings IKO

IKO CRBC 12025, CRBC 12025 UU crossed roller bearings

Nodes bearings has IKO CRBC 12025 and CRBC 12025 UU crossed roller bearings in stock, dimensions: 120mm x 180mm x 25mm, C: 47.7 KN, C0: 70.5 KN.

Inquire Now

  • Brand: IKO
  • Inside Diameter: 120 mm
  • Outside Diameter: 180 mm
  • Width: 25 mm
  • Basic dynamic load rating: 47.7 kN
  • Basic static load rating: 47.7 kN
IKO CRBC 13025, CRBC 13025 UU crossed roller bearings IKO

IKO CRBC 13025, CRBC 13025 UU crossed roller bearings

Nodes bearings has IKO CRBC 13025 and CRBC 13025 UU crossed roller bearings in stock, dimensions: 130mm x 190mm x 25mm, C: 49.2 KN, C0: 74.8 KN.

Inquire Now

  • Brand: IKO
  • Inside Diameter: 130 mm
  • Outside Diameter: 190 mm
  • Width: 25 mm
  • Basic dynamic load rating: 49.2 kN
  • Basic static load rating: 49.2 kN
IKO CRBC 14025, CRBC 14025 UU crossed roller bearings IKO

IKO CRBC 14025, CRBC 14025 UU crossed roller bearings

Nodes bearings has IKO CRBC 14025 and CRBC 14025 UU crossed roller bearings in stock, dimensions: 140mm x 200mm x 25mm, C: 50.7 KN, C0: 79.2 KN.

Inquire Now

  • Brand: IKO
  • Inside Diameter: 140 mm
  • Outside Diameter: 200 mm
  • Width: 25 mm
  • Basic dynamic load rating: 50.7 kN
  • Basic static load rating: 50.7 kN
IKO CRBC 15025, CRBC 15025 UU crossed roller bearings IKO

IKO CRBC 15025, CRBC 15025 UU crossed roller bearings

Nodes bearings has IKO CRBC 15025 and CRBC 15025 UU crossed roller bearings in stock, dimensions: 150mm x 210mm x 25mm, C: 53.8 KN, C0: 87.7 KN.

Inquire Now

  • Brand: IKO
  • Inside Diameter: 150 mm
  • Outside Diameter: 210 mm
  • Width: 25 mm
  • Basic dynamic load rating: 53.8 kN
  • Basic static load rating: 53.8 kN
IKO CRBC 15030, CRBC 15030 UU crossed roller bearings IKO

IKO CRBC 15030, CRBC 15030 UU crossed roller bearings

Nodes bearings has IKO CRBC 15030 and CRBC 15030 UU crossed roller bearings in stock, dimensions: 150mm x 230mm x 30mm, C: 69.2 KN, C0: 108 KN.

Inquire Now

  • Brand: IKO
  • Inside Diameter: 150 mm
  • Outside Diameter: 230 mm
  • Width: 30 mm
  • Basic dynamic load rating: 69.2 kN
  • Basic static load rating: 69.2 kN
IKO CRBC 20025, CRBC 20025 UU crossed roller bearings IKO

IKO CRBC 20025, CRBC 20025 UU crossed roller bearings

Nodes bearings has IKO CRBC 20025 and CRBC 20025 UU crossed roller bearings in stock, dimensions: 200mm x 260mm x 25mm, C: 60.2 KN, C0: 110 KN.

Inquire Now

  • Brand: IKO
  • Inside Diameter: 200 mm
  • Outside Diameter: 260 mm
  • Width: 25 mm
  • Basic dynamic load rating: 60.2 kN
  • Basic static load rating: 60.2 kN
IKO CRBC 30025, CRBC 30025 UU crossed roller bearings IKO

IKO CRBC 30025, CRBC 30025 UU crossed roller bearings

Nodes bearings has IKO CRBC 30025 and CRBC 30025 UU crossed roller bearings in stock, dimensions: 300mm x 360mm x 25mm, C: 73.8 KN, C0: 162 KN.

Inquire Now

  • Brand: IKO
  • Inside Diameter: 300 mm
  • Outside Diameter: 360 mm
  • Width: 25 mm
  • Basic dynamic load rating: 73.8 kN
  • Basic static load rating: 73.8 kN
IKO CRBC 20030 crossed roller bearings IKO

IKO CRBC 20030 crossed roller bearings

Nodes bearings has IKO CRBC 20030 crossed roller bearings in stock, dimensions: 200mm x 280mm x 30mm, C: 108 KN, C0: 178 KN.

Inquire Now

  • Brand: IKO
  • Inside Diameter: 200 mm
  • Outside Diameter: 280 mm
  • Width: 30 mm
  • Basic dynamic load rating: 108 kN
  • Basic static load rating: 108 kN
IKO CRBC 20035 crossed roller bearings IKO

IKO CRBC 20035 crossed roller bearings

Nodes bearings has IKO CRBC 20035 crossed roller bearings in stock, dimensions: 200mm x 295mm x 35mm, C: 137 KN, C0: 215 KN.

Inquire Now

  • Brand: IKO
  • Inside Diameter: 200 mm
  • Outside Diameter: 295 mm
  • Width: 35 mm
  • Basic dynamic load rating: 137 kN
  • Basic static load rating: 137 kN
IKO CRBC 25030 crossed roller bearings IKO

IKO CRBC 25030 crossed roller bearings

Nodes bearings has IKO CRBC 25030 crossed roller bearings in stock, dimensions: 250mm x 330mm x 30mm, C: 116 KN, C0: 208 KN.

Inquire Now

  • Brand: IKO
  • Inside Diameter: 250 mm
  • Outside Diameter: 330 mm
  • Width: 30 mm
  • Basic dynamic load rating: 116 kN
  • Basic static load rating: 116 kN
IKO CRBC 25040 crossed roller bearings IKO

IKO CRBC 25040 crossed roller bearings

Nodes bearings has IKO CRBC 25040 crossed roller bearings in stock, dimensions: 250mm x 355mm x 40mm, C: 179 KN, C0: 299 KN.

Inquire Now

  • Brand: IKO
  • Inside Diameter: 250 mm
  • Outside Diameter: 355 mm
  • Width: 40 mm
  • Basic dynamic load rating: 179 kN
  • Basic static load rating: 179 kN
IKO CRBC 30035 crossed roller bearings IKO

IKO CRBC 30035 crossed roller bearings

Nodes bearings has IKO CRBC 30035 crossed roller bearings in stock, dimensions: 300mm x 395mm x 35mm, C: 163 KN, C0: 299 KN.

Inquire Now

  • Brand: IKO
  • Inside Diameter: 300 mm
  • Outside Diameter: 395 mm
  • Width: 35 mm
  • Basic dynamic load rating: 163 kN
  • Basic static load rating: 163 kN
IKO CRBC 30040 crossed roller bearings IKO

IKO CRBC 30040 crossed roller bearings

Nodes bearings has IKO CRBC 30040 crossed roller bearings in stock, dimensions: 300mm x 405mm x 40mm, C: 194 KN, C0: 351 KN.

Inquire Now

  • Brand: IKO
  • Inside Diameter: 300 mm
  • Outside Diameter: 405 mm
  • Width: 40 mm
  • Basic dynamic load rating: 194 kN
  • Basic static load rating: 194 kN
