IKO CRBH 4010 A, CRBH 4010 AUU crossed roller bearings
Also known as : CRBH 4010 A
- Inside Diameter: 40 mm
- Outside Diameter: 65 mm
- Width: 10 mm
- Basic dynamic load rating: 8.61 kN
- Basic static load rating: 10.6 kN
IKO CRBH 4010 A
IKO CRBH 4010 A Bearing details
| Identification number |
CRBH 4010 A, open type CRBH 4010 AUU, sealed type |
|---|---|
| Type | IKO crossed roller bearing |
| Mass (Ref.) | 0.15 kg |

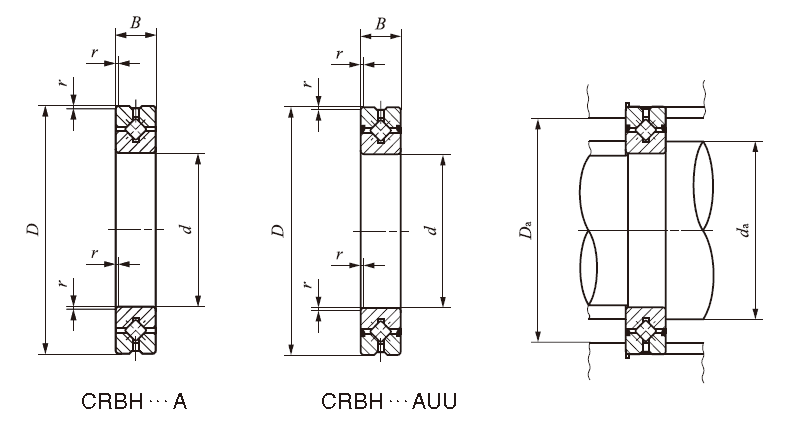

| Boundary dimensions | |
| d | 40 mm |
| D | 65 mm |
| B | 10 mm |
| r min | 0.3 mm |
| Mounting dimensions | |
| da | 46.5 mm |
| Da | 58.5 mm |
| C | 8.61 KN, Basic dynamic load rating |
| C0 | 10.6 KN, Basic static load rating |
As IKO bearings distributor, Nodes bearings has IKO CRBH 4010 A and CRBH 4010 AUU crossed roller bearings in stock.
CRBH 4010 A is Open type with separator. CRBH 4010 AUU is Sealed type with separator. They are High Rigidity Type Crossed Roller Bearings, Both inner and outer rings have a solid one-piece construction.
