IKO CRBS 1408, CRBS 1408 AUU crossed roller bearings
Also known as : CRBS 1408
- Inside Diameter: 140 mm
- Outside Diameter: 156 mm
- Width: 8 mm
- Basic dynamic load rating: 8.06 kN
- Basic static load rating: 16.4 kN
IKO CRBS 1408
IKO CRBS 1408 Bearing details
| Identification number |
CRBS 1408, open type CRBS 1408 AUU, sealed type |
|---|---|
| Type | IKO Slim Type Crossed Roller Bearings |
| Mass (Ref.) | 205 g |

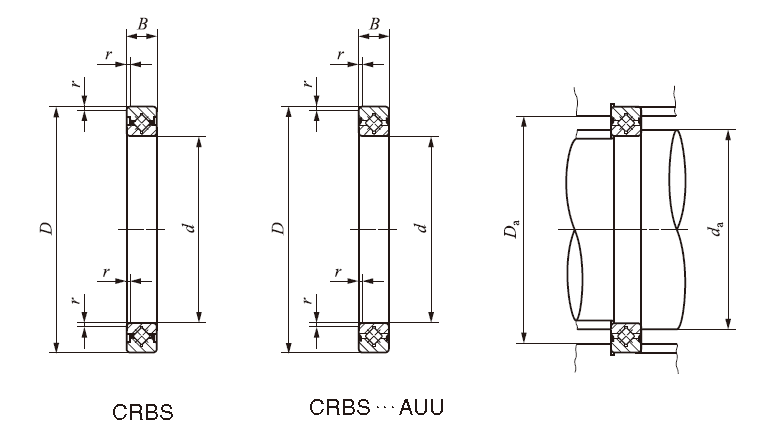

| Boundary dimensions | |
| d | 140 mm |
| D | 156 mm |
| B | 8 mm |
| r min | 0.4 mm |
| Mounting dimensions | |
| da | 144 mm |
| Da | 151 mm |
| C | 8.06 KN, Basic dynamic load rating |
| C0 | 16.4 KN, Basic static load rating |
As IKO bearings distributor, Nodes bearings has IKO CRBS 1408 and CRBS 1408 AUU crossed roller bearings in stock.
CRBS 1408 is Open type with cage. CRBS 1408 AUU is Sealed type with separator. These bearings are slim bearings having a small outside diameter, in comparison with the bore diameter, and a narrow width.
