IKO CRWU100-160 way guides

IKO CRWU100-160 crossed roller way unit

Also known as : CRWU100-160

  • Width: 100 mm
  • High: 45 mm
  • Way Length: 160 mm
  • Cr: 16.6 kN
  • C0r: 23.1 kN

Inquire Now

IKO CRWU100-160 Cam Follower Bearing

IKO CRWU100-160 crossed roller guide way details

S
Identification number CRWU100-160
Type IKO linear crossed roller guide ways, CRWU series
Mass (Ref.) 5.2 kg
Nominal dimensions and tolerances
W 100 mm
Dim. W tolerance +-0.15 mm
H 45 mm
Dim. H tolerance +-0.1 mm
L 160 mm
t1 16 mm
t2 15 mm
t3 13 mm
Maximum stroke length 95 mm

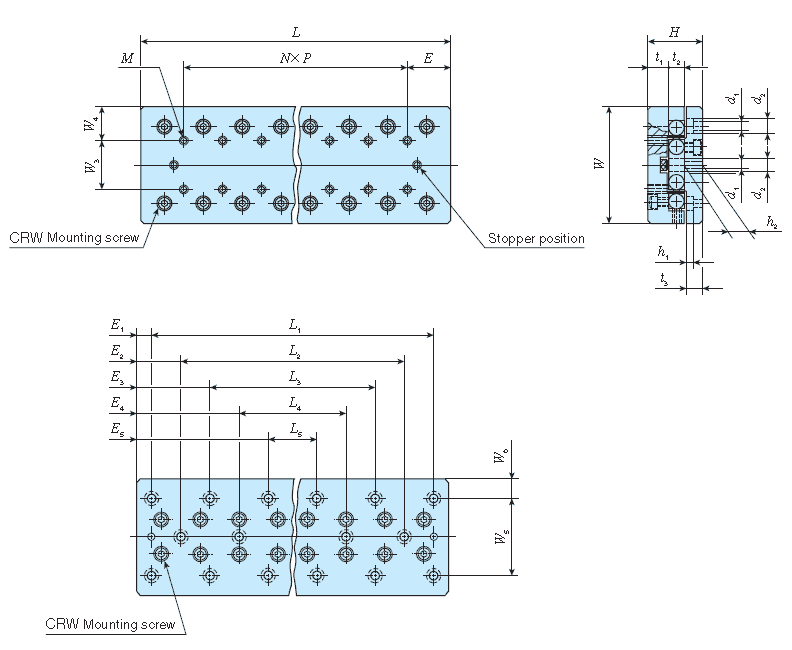

Table mounting dimensions
W3 50 mm
W4 25 mm
N X P 1X50 mm
E 55 mm
M M6 mm
Bed mounting dimensions
W5 60 mm
W6 20 mm
L1 140 mm
E1 10 mm
L2   mm
E2   mm
L3   mm
E3   mm
L4   mm
E4   mm
L5   mm
E5   mm
d1 7 mm
d2 11 mm
h1 6.5 mm
h2 14 mm
Basic dynamic load rating
C
16.6 KN
Basic static load rating
C0
23.1 KN
Allowable load
F
7690 N
Static moment rating
T0
519 N.m

As IKO bearings distributor, Nodes bearings has IKO CRWU100-160 linear crossed roller way units in stock.
