IKO CRWU30-55 way guides

IKO CRWU30-55 crossed roller way unit

Also known as : CRWU30-55

  • Width: 30 mm
  • High: 17 mm
  • Way Length: 55 mm
  • Cr: 0.786 kN
  • C0r: 1.2 kN

Inquire Now

IKO CRWU30-55 Cam Follower Bearing

IKO CRWU30-55 crossed roller guide way details

S
Identification number CRWU30-55
Type IKO linear crossed roller guide ways, CRWU series
Mass (Ref.) 0.2 kg
Nominal dimensions and tolerances
W 30 mm
Dim. W tolerance +-0.1 mm
H 17 mm
Dim. H tolerance +-0.1 mm
L 55 mm
t1 7 mm
t2 4 mm
t3 5.5 mm
Maximum stroke length 32 mm

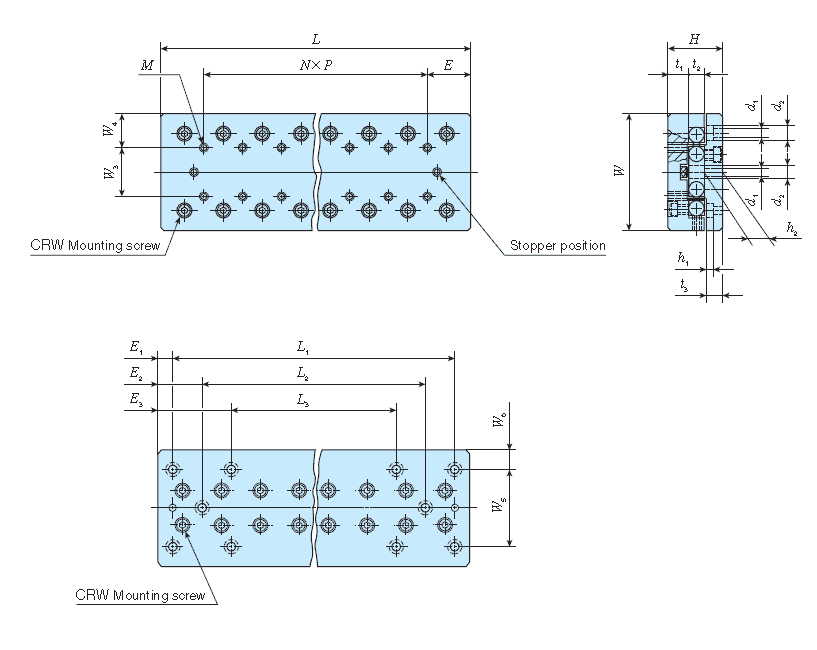

Table mounting dimensions
W3 10 mm
W4 10 mm
N X P 3X10 mm
E 12.5 mm
M M2 mm
Bed mounting dimensions
W5 22 mm
W6 4 mm
L1 48 mm
E1 3.5 mm
L2   mm
E2   mm
L3 28 mm
E3 13.5 mm
d1 2.55 mm
d2 4.1 mm
h1 2.5 mm
h2 6 mm
Basic dynamic load rating
C
0.786 KN
Basic static load rating
C0
1.2 KN
Allowable load
F
398 N
Static moment rating
T0
8.1 N.m

As IKO bearings distributor, Nodes bearings has IKO CRWU30-55 linear crossed roller way units in stock.
