IKO CRWU30-75R way guides

IKO CRWU30-75R crossed roller way unit

Also known as : CRWU30-75R

  • Width: 30 mm
  • High: 11 mm
  • Way Length: 75 mm
  • Cr: 1.02 kN
  • C0r: 1.67 kN

Inquire Now


IKO CRWU30-75R

IKO CRWU30-75R crossed roller guide way details

Identification number CRWU30-75R
Type IKO linear crossed roller guide ways, CRWU series
Mass (Ref.) 0.18 kg

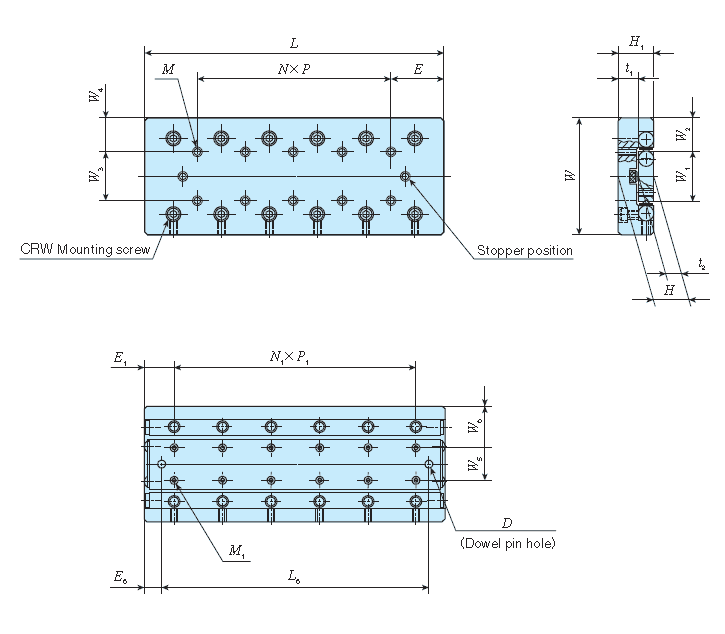

Nominal dimensions and tolerances
W 30 mm
Dim. W tolerance +-0.1 mm
H 11 mm
Dim. H tolerance +-0.1 mm
L 75 mm
Maximum stroke length 45 mm
Table mounting dimensions
W3 10 mm
W4 10 mm
N X P 5X10 mm
E 12.5 mm
M M2 mm
H1 11 mm
t1 7 mm
Center way mounting dimensions and tolerances
W5   mm
W6 15 mm
N1 X P1 6X10 mm
E1 7.5 mm
M1 M2 mm
D 2 mm
Dim. D tolerance +0.02 mm
L6 50 mm
E6 12.5 mm
W1 12.8 mm
W2 8.6 mm
t2 4 mm
Basic dynamic load rating
C
1.02 KN
Basic static load rating
C0
1.67 KN
Allowable load
F
558 N
Static moment rating
T0
11.3 N.m

As IKO bearings distributor, Nodes bearings has IKO CRWU30-75R linear crossed roller way units in stock.
