IKO GTRI254425 Bearing

IKO GTRI254425 needle bearings

Also known as : GTRI254425

  • Inside Diameter: 25 mm
  • Outside Diameter: 44 mm
  • Width: 25 mm
  • Basic dynamic load rating: 47 kN
  • Basic static load rating: 76.5 kN

Inquire Now

IKO GTRI254425 Bearing

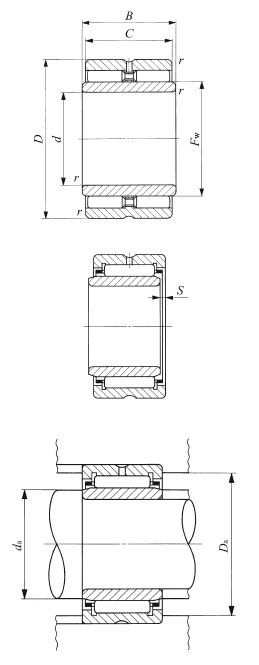

IKO GTRI254425 Bearing details

model GTRI254425
d 25 mm
D 44 mm
C 25 mm
B 25.5 mm
Fw 30 mm
rs min 0.3 mm
S   mm
da min 27 mm
da max 29 mm
Da max 42 mm
C 47000 N, Basic dynamic load rating
C0 76500 N, Basic static load rating
Allowable rotational speed 5000 rpm
Assembled inner ring LRTZ253025
Mass 175 g (approx.)

Nodes bearings, IKO needle roller bearings wholesaler, have IKO GTRI254425 needle bearings in stock. machined type Needle roller bearings with inner ring.
