IKO RNAF253517 Bearing

IKO RNAF253517 needle bearings

Also known as : RNAF253517, RNAO25x35x17

  • Inside Diameter: 25 mm
  • Outside Diameter: 35 mm
  • Width: 17 mm
  • Basic dynamic load rating: 17.3 kN
  • Basic static load rating: 26.6 kN

Inquire Now

IKO RNAF253517 Bearing

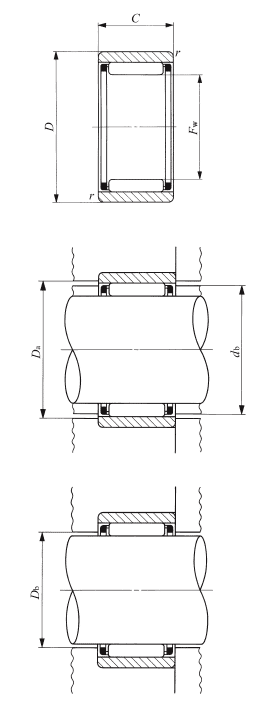

IKO RNAF253517 Bearing details

modelRNAF253517
Fw25 mm
D35 mm
C17 mm
rs min0.3 mm
db29.5 mm
Da max33 mm
Db25.6 mm
C17300 N, Basic dynamic load rating
C026600 N, Basic static load rating
Mass51 g (approx.)

Nodes bearings, IKO needle roller bearings wholesaler, have IKO RNAF253517 needle bearings in stock. machined type Needle roller bearings with separable cage, without inner ring.

IKO RNAF253517 bearing cross reference

IKO RNA 4904 bearing
D:25mm * 37mm * 17mm
IKO GTR 253820 bearing
D:25mm * 38mm * 20mm
IKO GTR 253825 bearing
D:25mm * 38mm * 25mm
IKO GTRI254425 bearing
25mm * 44mm * 25mm
IKO TAF 253316 bearing
D:25mm * 33mm * 16mm
IKO TAF 253320 bearing
D:25mm * 33mm * 20mm
IKO NA4905 bearing
25mm * 42mm * 17mm
IKO NA6905 bearing
25mm * 42mm * 30mm
IKO NA4905UU bearing
25mm * 42mm * 17mm
IKO NA6905UU bearing
25mm * 42mm * 30mm
IKO RNA 6904 bearing
D:25mm * 37mm * 30mm
IKO RNAFW223526 bearing
25mm * 35mm * 26mm
