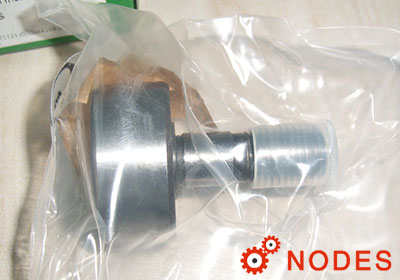

INA KR40-PP cam followers

INA KR40-PP Cam follower bearings

Also known as : KR40-PP, CF18BUUR

  • D: 40 mm
  • d1: 18 mm
  • B: 58 mm
  • Cr: 10.9 kN
  • C0r: 15.8 kN
INA KR40-PP Cam Follower Bearing

INA KR40-PP Cam Follower Bearing details

model KR40-PP
D 40 mm
d1 18 mm
B 58 mm
B1 max 21.6 mm
B2 36.5 mm
B3 8 mm
C 20 mm
C1 0.8 mm
d2 31.5 mm
d3 3 mm
G M18x1.5
IG 19 mm
rmin 1 mm
W 8 mm, Nominal dimension for hexagonal socket
MA 87 mm
Cr w 10900 N, Effective dynamic load rating as track roller (radial)
C0r w 15800 N, Effective static load rating as track roller (radial)
Cur w 2090 N, Fatigue limit load
Speed 2900 1/min, with continuous operation and grease lubrication
NIPA2X7,5 Drive fit lubrication nipple
Drive fit lubrication nipples are supplied loose.
Only these lubrication nipples should be used.
Ap AP8, Suitable central lubrication adapter for connection to a central lubrication system
mass 239 g

INA KR40-PP bearings, Cam follower bearings, with axial guidance, plastic axial plain washers on both sides.

INA KR40-PP bearing cross reference

INA KR40 bearing
D:40mm, d1:18mm, B:58mm
INA KRE40-PP bearing
D:40mm, de:22mm, B:58mm
INA KRV40-PP bearing
D:40mm, d1:18mm, B:58mm
INA NUKR40 bearing
D:40mm, d1:18mm, B:58mm
INA NUKRE40 bearing
D:40mm, d1:22mm, B:58mm
INA PWKR40-2RS-XL bearing
D:40mm, d1:18mm, B:58mm
INA PWKR40-2RS-RR-XL bearing
D:40mm, d1:18mm, B:58mm
INA PWKRE40-2RS bearing
D:40mm, d1:22mm, B:58mm
INA ZL202-DRS bearing
D:40mm, d1:16mm, B:23.8mm
INA ZL5202-DRS bearing
D:40mm, d1:16mm, B:36.2mm
INA KR5202-2RS bearing
D:40mm, d1:16mm, B:53.2mm
INA ZLE5202-2Z bearing
D:40mm, de:22mm, B:66.5mm
