INA bearing catalogue: INA ball bearings, thrust bearings, needle bearings, track runner, Plain bearings, thrust bearings. Schaeffler INA bearing catalogue give you the capability to select the correct INA bearings that best meet the needs of your application and equipment design.
If you need help in selecting INA bearing products for your particular application, please Contact us, the dedicated men and women who are here to serve you every day.
INA Axial/radial bearings with an incremental angular measuring system and pitch-coded reference marks comprise an axial/radial bearing YRTCM or YRTSM, each with a dimensional scale, an SRM electronic measuring system and signal leads SRMC. The elect
INA crossed roller bearings SX are bearings for high precision applications, whose main dimensions correspond to the ISO dimension series 18 with very small section height in accordance with DIN 616. They comprise outer rings, inner rings, rolling el
INA rod ends requiring maintenance and hydraulic rod ends incorporate spherical plain bearings with a steel/steel sliding contact surface. Schaeffler can also supply spherical plain bearings with a steel/ bronze sliding contact surface. INA rod ends
INA maintenance-free rod ends and maintenance-free corrosionresistant rod ends comprise a housing with integral shank and a maintenance-free spherical plain bearing. The shank has an internal or external thread, the spherical plain bearing is firmly
INA Spherical plain bearings allow spatial adjustment movements and, depending on the bearing type, can support radial, combined or axial loads. INA radial spherical plain bearings INA radial spherical plain bearings requiring maintenance comprise in
INA Spherical plain bearings allow spatial adjustment movements and, depending on the bearing type, can support radial, combined or axial loads. INA radial spherical plain bearings INA maintenance-free radial spherical plain bearings comprise inner r
INA needle roller / axial deep groove ball bearings do not have an inner ring and are therefore particularly compact in a radial direction. However, they require a shaft raceway that is hardened and ground. INA combined needle bearings NX and NX..-Z
INA Needle roller/angular contact ball bearings NKIA and NKIB have an inner ring. Series NKIA corresponds to DIN 5 429-2. It can support axial loads from one direction. INA combined needle bearings NKIB has one narrow inner ring and one wide inner ri

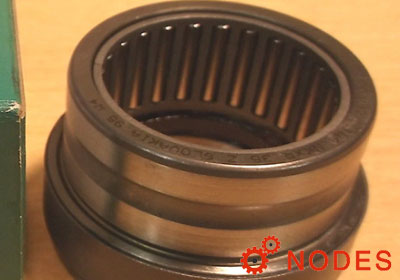

INA Needle roller/axial cylindrical roller bearings do not have an inner ring and are therefore particularly compact in a radial direction. However, they require a shaft raceway that is hardened and ground. INA bearings Series NKXR and NKXR..-Z have
INA Housing locating washers Housing locating washers are centred on the housing and must be used if the adjacent construction cannot be used as a running surface. The bore diameter, outside diameter and running surface are precision machined. The di
INA Axial cylindrical roller and cage assemblies, The cage assemblies comprise axial cages and one or two rows of cylindrical rollers. The diameter series 1, 2, 3, 4 correspond to DIN 616/ISO 104. The cages are made from plastic or brass and are guid
INA axial cylindrical roller bearings comprise axial cylindrical roller and cage assemblies K, housing locating washers GS and shaft locating washers WS. The INA bearings have very low axial section height, high load capacity, high rigidity and can s
INA thin section ball bearings are high-precision products with very little running noise and a high load-carrying capacity. These INA bearings are available in three different designs with extremely small, predominantly square cross-sections. Within
Nodes bearings have INA shell needle bearings in stock including SCE, SCH, BCE, BCH, S, SH, CS, CSH.INA shell needle bearings have a very small radial section.
INA aligning needle roller bearings are units comprising drawn outer cups, plastic support rings with a concave inner profile, outer rings with a spherical outside surface, needle roller and cage assemblies and removable inner rings.
INA F-214617 Cam Follower for Heidelberg M Offset: 00.550.1223, Dimensions: D:26mm x d1:10mm x C1:35mm.
INA F-208089.2 Cam Follower for Heidelberg MO Perfecting Unit 00.550.0777, Dimensions: D:26mm x d1:18mm x B1:48mm.
INA F-52408 Cam Follower For Heidelberg Printing Press 00.550.436, Dimensions: D:22mm x d1:10mm x B1:33mm.
INA F-4346.04.ZARI Flat Thrust Bearing Heidelberg Printer 5 pc Set 110mm x 130mm x 25mm. Use For Heidelburg Offset Printer.
INA K155X163X70 Needle Bearing Cage for Heidelberg printing, For Heidelberg printing machine: 00.550.1434, 70mm wide, 155mm inner diameter & 163mm outer diameter.
INA needle roller bearings with ribs are single or double row units comprising machined outer rings with ribs, needle roller and cage assemblies and removable inner rings.

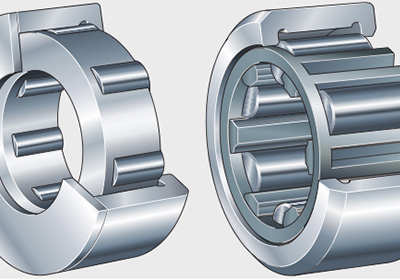

INA spindle neck bearings for textile bearings are cylindrical roller bearings with very high load carrying capacity for the radial guidance of spinning and twisting spindles.

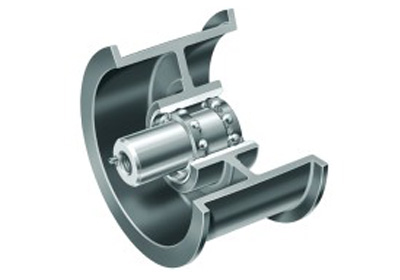

INA tape tension pulleys and pulley bearings for textile bearings features, Sealing, Lubrication, Relubrication

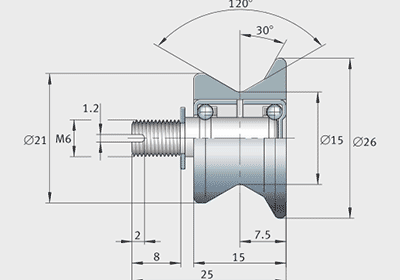

INA thread guidance rollers have an outside surface with hard chromium plating. They run extremely easily and are therefore used in spooling, twisting and texturing machines.
INA needle roller and cage assemblies are single or double row units comprising cages and needle rollers.
INA stud type track rollers are similar in their construction to single and double row yoke type track rollers, except that the raceway is formed by a heavy-section roller stud with a fixing thread and lubrication hole.
INA stud type track rollers without an eccentric collar do not have a defined adjustment facility in relation to the mating track on the adjacent construction.

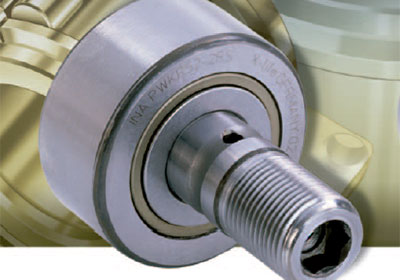

INA Stud type track roller PWKR comprise thick-walled outer rings with a profiled lateral surface, solid section roller studs with a fixing thread

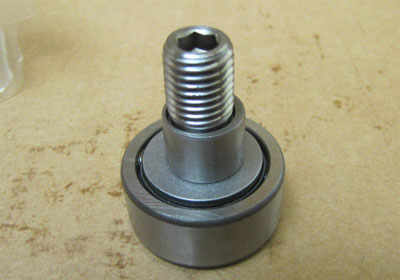

INA Stud type track rollers with an eccentric collar can be adjusted by means of a hexagonal socket on the flanged or threaded side of the roller stud.

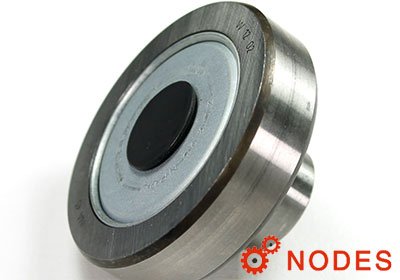

INA track rollers ZL2 are single row units, ZL52, ZLE52 and KR52 are double row units, INA stud type track rollers have outer rings with a crowned outside surface.
INA drawn cup needle roller bearings HK are open on both sides. Sealed INA drawn cup needle roller bearings with open ends correspond to DIN 618-2.
Nodes bearings have INA sealed shell needle bearings in stock.INA sealed shell needle bearings are provided with lip seals which under normal operating conditions protect the bearings against contamination and prevent leakage of grease.
Nodes bearings have INA HN series full complement needle roller bearings in stock.INA full complement drawn cup needle roller bearings with open ends comprise thin-walled drawn outer rings and needle rollers without any mechanical means of needle rete

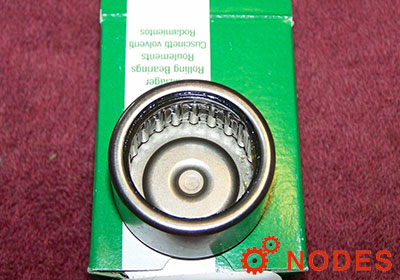

INA drawn cup needle roller bearings BK are closed at one end. They are thus suitable for closing off the shaft ends of bearing arrangements.
INA drawn cup needle roller bearings with open ends and with closed end are complete units comprising thin-walled, drawn cup outer rings and needle roller and cage assemblies.
full-complement INA cylindrical roller bearings are true star performers when it comes to load carrying capacity and rigidity.
INA Full complement cylindrical roller bearings with annular slots. Rope sheave INA bearings are full complement cylindrical roller bearings with annular slots and are designed as locating bearings.
