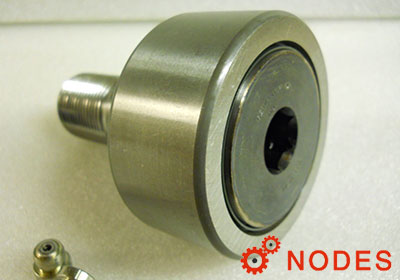

INA NUKRE62 cam followers

INA NUKRE62 Stud type track rollers

Also known as : NUKRE62

• D: 62 mm
• d1: 28 mm
• B: 80 mm
• Cr: 40 kN
• C0r: 55 kN

INA NUKRE62 Bearing

model	NUKRE62
D	62 mm
de	28 mm, Eccentric collar, Tolerance: h9
B	80 mm
B1 max	30.6 mm
B2	49.5 mm
Be	22 mm, Eccentric collar
C	28 mm
C1	1.3 mm
d1	24 mm, Tolerance: h7
d2	38 mm
e	1 mm, Eccentric collar
G	M24x1.5
IG	25 mm
rmin	1 mm
W	14 mm, Nominal dimension for hexagonal socket
MA	220 mm
Cr w	40000 N, Effective dynamic load rating as track roller (radial)
C0r w	55000 N, Effective static load rating as track roller (radial)
Cur w	7300 N, Fatigue limit load
Fr per	23400 N, Permissible dynamic radial load
F0r per	46000 N, Permissible static radial load
Speed	2600 1/min, with continuous operation and grease lubrication
NIPA3X9,5	Drive fit lubrication nipple Drive fit lubrication nipples are supplied loose. Only these lubrication nipples should be used.
AP	AP14, Suitable central lubrication adapter for connection to a central lubrication system
mass	824 g

INA NUKRE62 bearings, Cam follower bearings, with axial guidance, full complement cylindrical roller set, with eccentric collar, labyrinth seals on both sides.
