INA YRT100 bearing | 100x185x38 mm
Also known as : YRT100
- Inside Diameter: 100 mm
- Outside Diameter: 185 mm
- Width: 38 mm
- Basic dynamic load rating: 52 kN
- Basic static load rating: 108 kN
INA YRT100 Bearing
INA YRT100 Bearing details

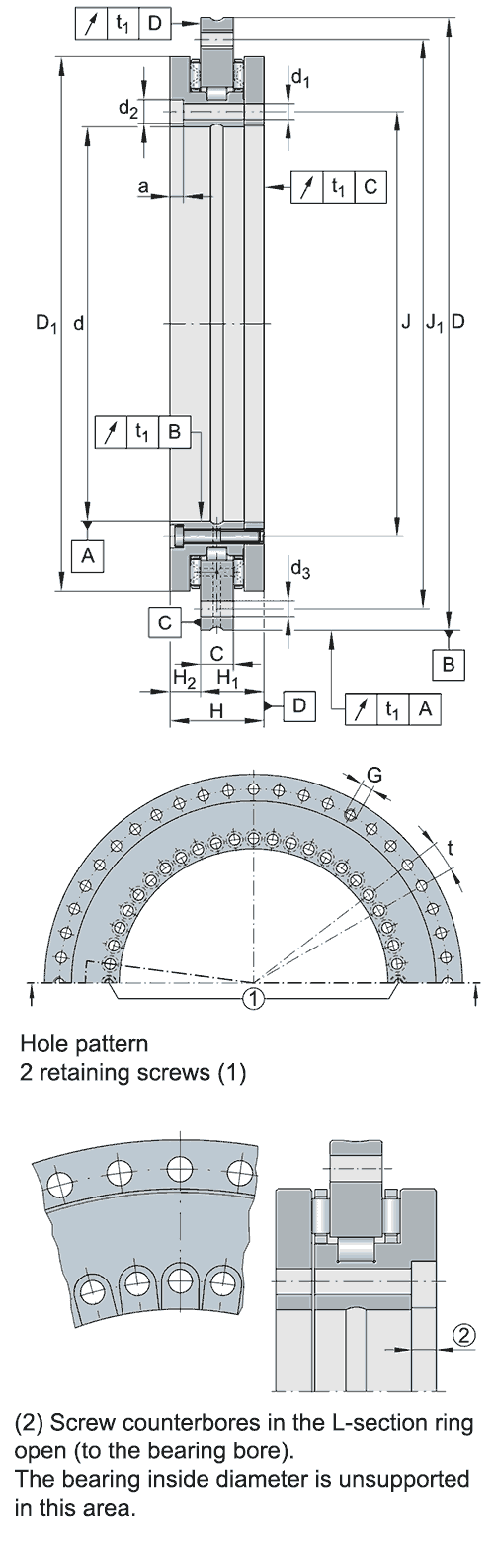

| Number | YRT100 | |
|---|---|---|
| Type |
Axial/radial bearings double direction, for screw mounting |
|
| d | 100mm | Tolerance: 0/-0,01 |
| D | 185mm | Tolerance: 0/-0,015 |
| H | 38mm | |
| 16 |
Number of fixing holes in inner ring Attention! For fixing holes in the adjacent construction. Note the pitch of the bearing holes. |
|
| 15 |
Number of fixing holes in outer ring Attention! For fixing holes in the adjacent construction. Note the pitch of the bearing holes. |
|
| 2 | Number of retaining screws | |
| 3 | Number of extraction threads | |
| a | 5,4mm | Fixing holes in inner ring |
| C | 12mm | |
| D1 max | 161mm | Diameter of inner ring for design of adjacent construction |
| d1 | 5,6mm | Fixing holes in inner ring |
| d2 | 10mm | Fixing holes in inner ring |
| d3 | 5,6mm | Fixing holes in outer ring |
| G | M5 | Extraction thread |
| H1 | 25mm | |
| H2 | 13mm | |
| J | 112mm | Fixing holes in inner ring |
| J1 | 170mm | Fixing holes in outer ring |
| t | 18 x 20° |
Pitch t Including retaining screws and extraction threads Quantity X t |
| m | 4,1kg | ≈ Mass |
| MA | 8,5Nm |
Screw tightening torque Tightening torque for screws to DIN EN ISO 4762, grade 10.9. |
| Ca | 73000N | Basic dynamic load rating, axial |
| C0a | 370000N | Basic static load rating, axial |
| Cr | 52000N | Basic dynamic load rating, radial |
| C0r | 108000N | Basic static load rating, radial |
| Cur | 15000N | Fatigue limit load, radial |
| Cua | 36000N | Fatigue limit load, axial |
| nG | 2801/min |
Limiting speed For high operating durations or continuous operation, please contact us. |
| MR | 3Nm |
Bearing frictional torque Measurement speed n const = 5 1/min, bearing temperature +50°C, after grease distribution cycle; frictional torque may increase by 2,5 times up to the limiting speed. |
| caL | 2000N/µm |
Axial rigidity of bearing position Rigidity values taking account of the rolling element set, rigidity of the bearing rings and the screw connections. |
| crL | 2000N/µm |
Radial rigidity of bearing position Rigidity values taking account of the rolling element set, rigidity of the bearing rings and the screw connections. |
| ckL | 5000Nm/mrad |
Tilting rigidity of the bearing position Rigidity values taking account of the rolling element set, rigidity of the bearing rings and the screw connections. |
| caL | 6800N/µm | Axial rigidity of rolling element set |
| crL | 2400N/µm | Radial rigidity of rolling element set |
| ckL | 15000Nm/mrad | Tilting rigidity of rolling element set |
As INA bearing distributor, Nodes bearings have INA YRT100 rotary table bearings in stock. YRT100, double direction, for screw mounting.
