INA YRTC120-XL bearing | 120x210x40 mm
Also known as : YRTC120-XL
- Inside Diameter: 120 mm
- Outside Diameter: 210 mm
- Width: 40 mm
- Basic dynamic load rating: 69 kN
- Basic static load rating: 124 kN
INA YRTC120-XL Bearing
INA YRTC120-XL Bearing details

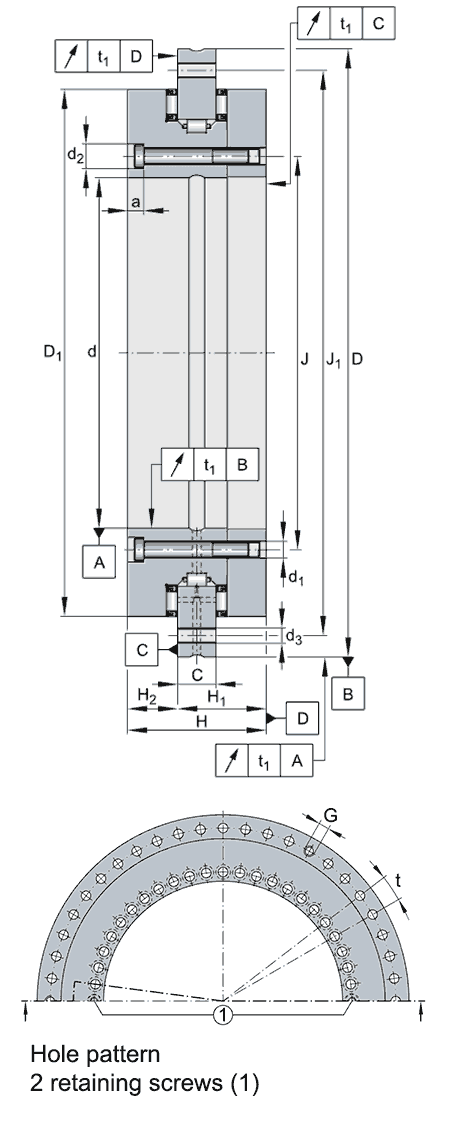

| Number | YRTC120-XL | |
|---|---|---|
| Type |
Axial/radial bearings Double direction, for screw mounting |
|
| d | 120mm | Tolerance: 0/-0,01 |
| D | 210mm | Tolerance: 0/-0,015 |
| H | 40mm | |
| 22 |
Number of fixing holes in inner ring Attention! For fixing holes in the adjacent construction. Note the pitch of the bearing holes. |
|
| 21 |
Number of fixing holes in outer ring Attention! For fixing holes in the adjacent construction. Note the pitch of the bearing holes. |
|
| 2 | Number of retaining screws | |
| 3 | Number of extraction threads | |
| a | 6,2mm | Fixing holes in inner ring |
| C | 12mm | |
| D1 max | 185mm | Diameter of inner ring for design of adjacent construction |
| d1 | 7mm | Fixing holes in inner ring |
| d2 | 11mm | Fixing holes in inner ring |
| d3 | 7mm | Fixing holes in outer ring |
| G | M8 | Extraction thread |
| H1 | 26mm | |
| H2 | 14mm | |
| J | 135mm | Fixing holes in inner ring |
| J1 | 195mm | Fixing holes in outer ring |
| t | 24 x 15° |
Pitch t Including retaining screws and extraction threads Quantity X t |
| m | 4,61kg | ≈ Mass |
| MA | 14Nm |
Screw tightening torque Tightening torque for screws to DIN EN ISO 4762, grade 10.9. |
| Ca | 112000N | Basic dynamic load rating, axial |
| C0a | 520000N | Basic static load rating, axial |
| Cr | 69000N | Basic dynamic load rating, radial |
| C0r | 124000N | Basic static load rating, radial |
| Cur | 19800N | Fatigue limit load, radial |
| Cua | 55000N | Fatigue limit load, axial |
| nG | 9001/min |
Limiting speed For high operating durations or continuous operation, please contact us. |
| MR | 4Nm |
Bearing frictional torque Measurement speed n const = 5 1/min, bearing temperature +50°C, after grease distribution cycle; frictional torque may increase by 2,5 times up to the limiting speed. |
| caL | 2900N/µm |
Axial rigidity of bearing position Rigidity values taking account of the rolling element set, rigidity of the bearing rings and the screw connections. |
| crL | 2600N/µm |
Radial rigidity of bearing position Rigidity values taking account of the rolling element set, rigidity of the bearing rings and the screw connections. |
| ckL | 11200Nm/mrad |
Tilting rigidity of the bearing position Rigidity values taking account of the rolling element set, rigidity of the bearing rings and the screw connections. |
| caL | 9800N/µm | Axial rigidity of rolling element set |
| crL | 4000N/µm | Radial rigidity of rolling element set |
| ckL | 35500Nm/mrad | Tilting rigidity of rolling element set |
As INA bearing distributor, Nodes bearings have INA YRTC120-XL rotary table bearings in stock. YRTC120-XL, Double direction, for screw mounting.
