INA YRTS325 bearing | 325x450x60 mm
Also known as : YRTS325
- Inside Diameter: 325 mm
- Outside Diameter: 450 mm
- Width: 60 mm
- Basic dynamic load rating: 109 kN
- Basic static load rating: 320 kN
INA YRTS325 Bearing

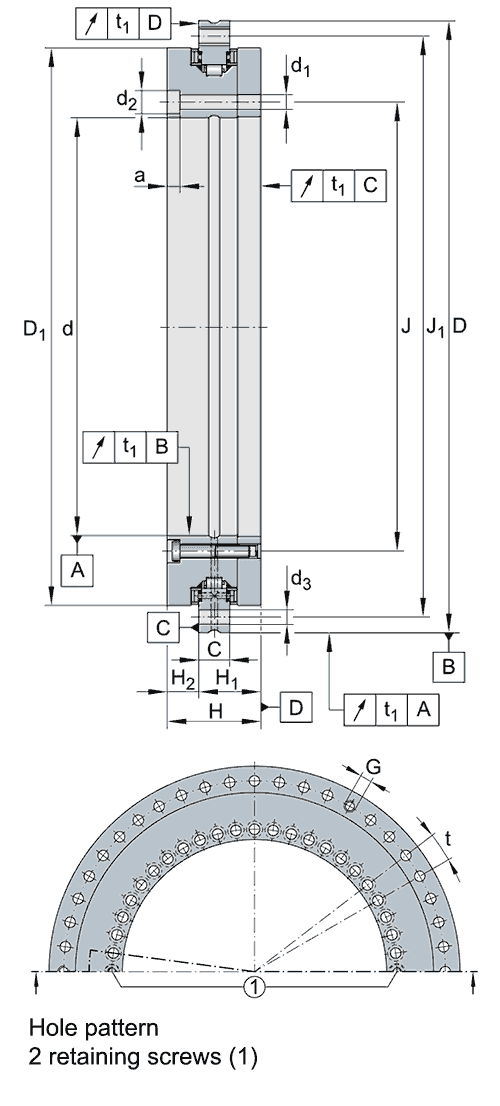

INA YRTS325 Bearing details
| Number | YRTS325 | |
|---|---|---|
| Type |
Axial/radial bearings double direction, for screw mounting, for higher speeds |
|
| d | 325mm | Tolerance: 0/-0,023 |
| D | 450mm | Tolerance: 0/-0,023 |
| H | 60mm | |
| 34 |
Number of fixing holes in inner ring Attention! For fixing holes in the adjacent construction. Note the pitch of the bearing holes. |
|
| 33 |
Number of fixing holes in outer ring Attention! For fixing holes in the adjacent construction. Note the pitch of the bearing holes. |
|
| 2 | Number of retaining screws | |
| 3 | Number of extraction threads | |
| a | 8,2mm | Fixing holes in inner ring |
| C | 20mm | |
| D1 max | 415,1mm | Diameter of inner ring for design of adjacent construction |
| d1 | 9,3mm | Fixing holes in inner ring |
| d2 | 15mm | Fixing holes in inner ring |
| d3 | 9,3mm | Fixing holes in outer ring |
| G | M12 | Extraction thread |
| H1 | 40mm | |
| H2 | 20mm | |
| J | 342mm | Fixing holes in inner ring |
| J1 | 430mm | Fixing holes in outer ring |
| t | 36 x 10° |
Pitch t Including retaining screws and extraction threads Quantity X t |
| m | 25kg | ≈ Mass |
| MA | 34Nm |
Screw tightening torque Tightening torque for screws to DIN EN ISO 4762, grade 10.9. |
| Ca | 191000N | Basic dynamic load rating, axial |
| C0a | 1260000N | Basic static load rating, axial |
| Cr | 109000N | Basic dynamic load rating, radial |
| C0r | 320000N | Basic static load rating, radial |
| Cur | 42500N | Fatigue limit load, radial |
| Cua | 122000N | Fatigue limit load, axial |
| nG | 7601/min | Limiting speed |
| caL | 6600N/µm |
Axial rigidity of bearing position Rigidity values taking account of the rolling element set, rigidity of the bearing rings and the screw connections. |
| crL | 1800N/µm |
Radial rigidity of bearing position Rigidity values taking account of the rolling element set, rigidity of the bearing rings and the screw connections. |
| ckL | 115000Nm/mrad |
Tilting rigidity of the bearing position Rigidity values taking account of the rolling element set, rigidity of the bearing rings and the screw connections. |
| caL | 19900N/µm | Axial rigidity of rolling element set |
| crL | 7100N/µm | Radial rigidity of rolling element set |
| ckL | 350000Nm/mrad | Tilting rigidity of rolling element set |
| Mm | 4506kg * cm^2 | Mass moment of inertia for rotating inner ring IR |
| Mm | 2489kg * cm^2 | Mass moment of inertia for rotating outer ring AU |
As INA bearing distributor, Nodes bearings have INA YRTS325 rotary table bearings in stock. YRTS325, double direction, for screw mounting, for higher speeds.
