INA ZKLDF200 bearing | 200x300x45 mm
Also known as : ZKLDF200
- Inside Diameter: 200 mm
- Outside Diameter: 300 mm
- Width: 45 mm
- Basic dynamic load rating: 0 kN
- Basic static load rating: 0 kN
INA ZKLDF200 Bearing

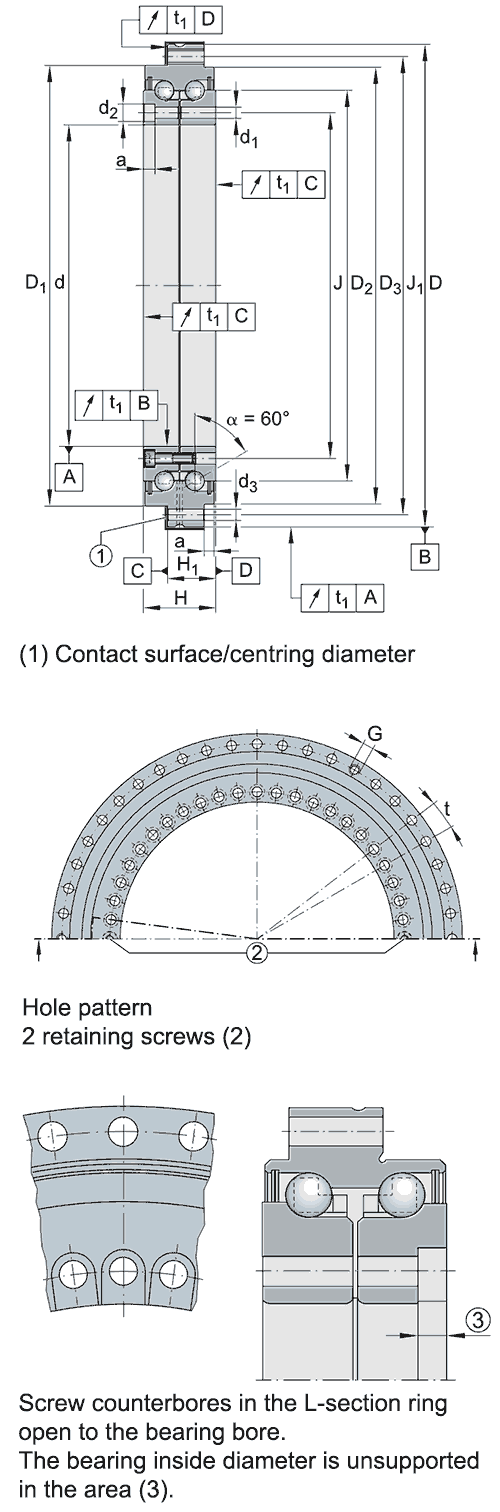

INA ZKLDF200 Bearing details
| Number | ZKLDF200 | |
|---|---|---|
| Type |
Axial angular contact ball bearings double direction, for screw mounting, sealing shields on both sides |
|
| d | 200mm | Sizes d > 460 mm available by agreement |
| D | 300mm | |
| H | 45mm | |
| 46 |
Number of fixing holes in inner ring Attention! For fixing holes in the adjacent construction. Note the pitch of the bearing holes. |
|
| 2 | Number of retaining screws | |
| 45 |
Number of fixing holes in outer ring Attention! For fixing holes in the adjacent construction. Note the pitch of the bearing holes. |
|
| 3 | Number of extraction threads | |
| a | 6,2mm | Fixing holes in inner ring |
| D1 | 274mm | |
| D2 | 243mm | |
| D3 | 271mm | |
| d1 | 7mm | Fixing holes in inner ring |
| d2 | 11mm | Fixing holes in inner ring |
| d3 | 7mm | Fixing holes in outer ring |
| G | M8 | Extraction thread |
| H1 | 30mm | |
| J | 215mm | Fixing holes in inner ring |
| J1 | 285mm | Fixing holes in outer ring |
| t | 48 x 7,5° |
Pitch t Including retaining screws and extraction threads Quantity X t |
| m | 10kg | ≈ Mass |
| MA | 14Nm |
Screw tightening torque Tightening torque for screws to DIN 912, grade 10.9. |
| Ca | 121000N | Basic dynamic load rating, axial |
| C0a | 610000N | Basic static load rating, axial |
| Cua | 17900N | Fatigue limit load, axial |
| nG | 32001/min |
Limiting speed The limiting speeds increased by a factor of two are valid for bearings of the current generation with the internal suffix -B. |
| caL | 2500N/µm |
Axial rigidity of bearing position Rigidity values taking account of the rolling element set, rigidity of the bearing rings and the screw connections. |
| crL | 600N/µm |
Radial rigidity of bearing position Rigidity values taking account of the rolling element set, rigidity of the bearing rings and the screw connections. |
| ckL | 17500Nm/mrad |
Tilting rigidity of the bearing position Rigidity values taking account of the rolling element set, rigidity of the bearing rings and the screw connections. |
| caL | 3700N/µm | Axial rigidity of rolling element set |
| crL | 600N/µm | Radial rigidity of rolling element set |
| ckL | 26000Nm/mrad | Tilting rigidity of rolling element set |
As INA bearing distributor, Nodes bearings have INA ZKLDF200 rotary table bearings in stock. ZKLDF200, double direction, for screw mounting, sealing shields on both sides.
