INA RWU65-E-SL-V3-G2 Recirculating roller bearing carriage
- Height (mm): 90
- Width carriage (mm): 126
- Length carriage (mm): 261.9
- Width rail (mm): 63
- ball/roller: roller
- mounting hole width (mm): 76
- mounting hole length (mm): 120
INA RWU65-E-SL-V3-G2

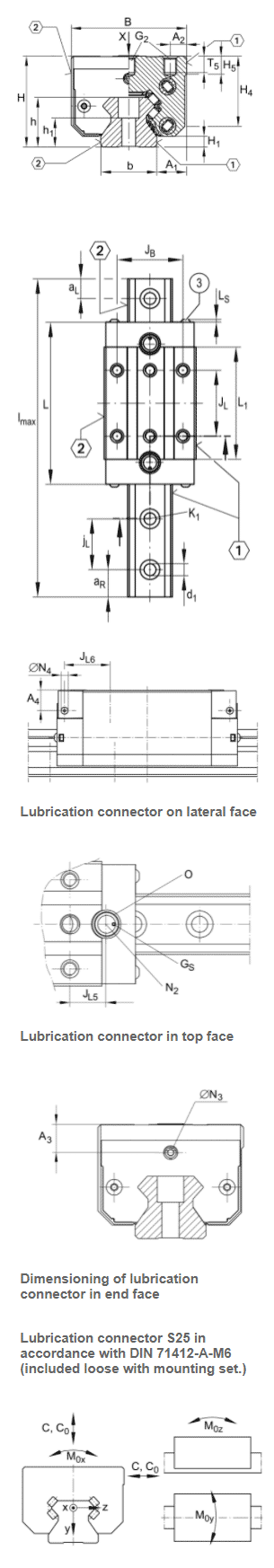

INA RWU65-E-SL-V3-G2 details
| Part Number | RWU65-E-SL-V3-G2 |
|---|---|
| Brand | INA |
| Catagory | High, narrow, long carriage with full complement recirculating roller system for linear recirculating roller bearing and guideway assembly, for oil or grease lubrication |
| Main Dimensions & Performance Data | |
| H | 90 mm, height system |
| B | 126 mm, width carriage |
| L | 261.9 mm, overall length carriage |
| C | 270000 N, dynamic load rating |
| C0 | 640000 N, dynamic load rating |
| M0x | 7,600 Nm, static moment rating about X axis |
| M0y | 24,000 Nm, static moment rating about Y axis |
| M0z | 21,500 Nm, static moment rating about Z axis |
| Weight | 10.701 kg |
| Mounting dimensions | |
| A1 | 31.5 mm |
| JB | 76 mm |
| b | 63 mm, width rail |
| A2 | 25 mm |
| L1 | 207.6 mm |
| LS | 2.75 mm |
| JL | 120 mm |
| H1 | 11.5 mm |
| H4 | 61.2 mm |
| H5 | 15 mm |
| T5 | 12.5 mm |
| G2 | M16, fixing screws below |
| G2 MA | 340 Nm, maximum tightening torque |
| K3 | , fixing screws below |
| A3 | 19.6 mm, position lubrication connector |
| N3 | M6, lubrication connector |
| t N3 | 6 mm, maximum permissible screw depth for lubrication connectors |
| N4 | 6, lubrication connector |
| t N4 | 6 mm, maximum permissible screw depth for lubrication connectors |
| N2 | 6 mm, max. diameter of lubrication hole in adjacent construction |
| JL5 | 43.8 mm, position lubrication connector |
| GS | M4x4 |
| O | 18x1,5 mm, O-Ring |
INA RWU65-E-SL-V3-G2, High, narrow, long carriage with full complement recirculating roller system for linear recirculating roller bearing and guideway assembly, for oil or grease lubrication.
- Carriage design: SL
- Preload: V3
- Accuracy class: G2
