RSL182211-A-XL INA cylindrical roller bearings
Also known as :
- Inside Diameter: 55 mm
- Outside Diameter: 88.81 mm
- Width: 25 mm
- Basic dynamic load rating: 140 kN
- Basic static load rating: 148 kN
INA RSL182211-A-XL Bearing
INA RSL182211-A-XL Bearing details
| Part Number | RSL182211-A-XL | |
|---|---|---|
| Brand | INA | |
| Description | Cylindrical roller bearing RSL18..-XL, full complement roller set, single row, non-locating bearing, no outer ring, 2 ribs on inner ring, edge radius RV on one side, type RSL18 | |
| Tolerance class | PN | Normal (PN) |
| Number of rolling element rows | 1 | Single-row design |
| Main Dimensions & Performance Data | ||
| d | 55 mm | Bore diameter |
| Ew | 88.81 mm | |
| B | 25 mm | Width |
| Cr | 140000 N | Basic dynamic load rating, radial |
| C0r | 148000 N | Basic static load rating, radial |
| Cur | 25500 N | Fatigue load limit, radial |
| nG | 4350 1/min | Limiting speed |
| m | 530 g | Weight |
| Dimensions | ||
| da min | 70 mm | Minimum diameter shaft shoulder |
| r min | 1.5 mm | Minimum chamfer dimension |
| d1 | 70 mm | Maximum rib diameter inner ring |
| Tk | 76.81 mm | pitch circle |
INA RSL182211-A-XL bearing cross reference

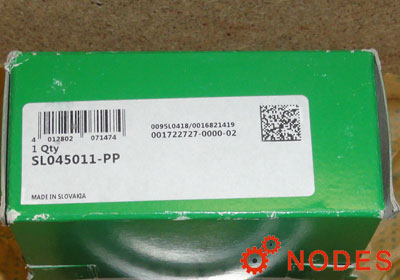

INA SL045011-PP bearing
55mm x 90mm x 46mm
INA SL182211-XL bearing
55mm x 100mm x 25mm

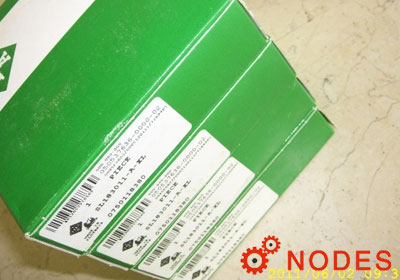

INA SL183011-XL bearing
55mm x 90mm x 26mm
INA SL185011-XL bearing
55mm x 90mm x 46mm
