INA RSL185014-A Bearing

RSL185014-A INA cylindrical roller bearings

Also known as :

• Inside Diameter: 70 mm
• Outside Diameter: 100.28 mm
• Width: 54 mm
• Basic dynamic load rating: 233 kN
• Basic static load rating: 350 kN

Inquire Now

INA RSL185014-A Bearing

RSL185014-A, Brand: INA

Part Number	RSL185014-A
Brand	INA
Description	Cylindrical roller bearing RSL18, full complement roller set, two-row, semi-locating bearing, no outer ring, 3 ribs on inner ring, type RSL18
Tolerance class	PN	Normal (PN)
Number of rolling element rows	2	Double-row design

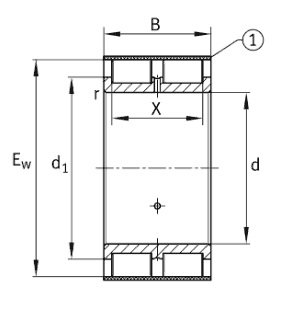

Main Dimensions & Performance Data
d	70 mm	Rib diameter inner ring
Ew	100.28 mm
B	54 mm	Width
r min	1.1 mm	Minimum chamfer dimension
Cr	233 kN	Basic dynamic load rating, radial
C0r	350 kN	Basic static load rating, radial
Cur	48.5 kN	Fatigue load limit, radial
nG	3750 1/min	Limiting speed
nϑr	2500 1/min	Reference speed
m	1136.4 g	Weight
Mounting dimensions
da min	81.5 mm	Minimum diameter shaft shoulder
