INA SL014856 roller bearings
Also known as : SL014856, NNC4856V
- Inside Diameter: 280 mm
- Outside Diameter: 350 mm
- Width: 69 mm
- Basic dynamic load rating: 700 kN
- Basic static load rating: 1820 kN
INA SL014856 Bearing
INA SL014856 Bearing details
| model | SL014856 |
|---|---|
| d | 280 mm |
| D | 350 mm |
| B | 350 mm |
| C | 34.5 mm |
| D1 | 326.4 mm |
| d1 | 306.8 mm |
| rmin | 2 mm |
| Cr | 700000 N |
| C0r | 1820000 N |
| Cur | 198000 N, Fatigue limit load, radial |
| Limiting speed | 570 1/min |
| Reference speed | 980 1/min |
| mass | 16 kg |
INA SL014856 roller bearings, Designation to DIN 5412: NNC4856V, Cylindrical roller bearings, locating bearing, double row, full complement cylindrical roller set
INA SL014856 bearing cross reference
INA SL014956 bearing
280mm x 380mm x 100mm
INA SL024856 bearing
280mm x 350mm x 69mm
INA SL024956 bearing
280mm x 380mm x 100mm
INA SL045056-PP bearing
280mm x 420mm x 190mm

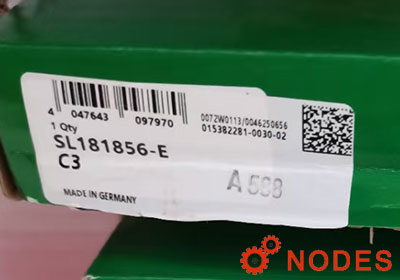

INA SL181856-E bearing
280mm x 350mm x 33mm
INA SL182956-TB bearing
280mm x 380mm x 60mm
INA SL183056-TB bearing
280mm x 420mm x 106mm
