INA SL014916 roller bearings
Also known as : SL014916, NNC4916V
- Inside Diameter: 80 mm
- Outside Diameter: 110 mm
- Width: 30 mm
- Basic dynamic load rating: 112 kN
- Basic static load rating: 206 kN
INA SL014916 Bearing
INA SL014916 Bearing details
| model | SL014916 |
|---|---|
| d | 80 mm |
| D | 110 mm |
| B | 110 mm |
| C | 15 mm |
| D1 | 96.2 mm |
| d1 | 91.4 mm |
| rmin | 1 mm |
| Cr | 112000 N |
| C0r | 206000 N |
| Cur | 30000 N, Fatigue limit load, radial |
| Limiting speed | 2090 1/min |
| Reference speed | 3550 1/min |
| mass | 0.88 kg |
INA SL014916 roller bearings, Designation to DIN 5412: NNC4916V, Cylindrical roller bearings, locating bearing, double row, full complement cylindrical roller set
INA SL014916 bearing cross reference
INA SL024916 bearing
80mm x 110mm x 30mm
INA SL045016-PP bearing
80mm x 125mm x 60mm

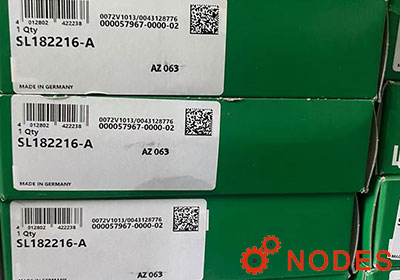

INA SL182216 bearing
80mm x 140mm x 33mm
INA SL182916-XL bearing
80mm x 110mm x 19mm
INA SL183016 bearing
80mm x 125mm x 34mm
INA SL185016-XL bearing
80mm x 125mm x 60mm

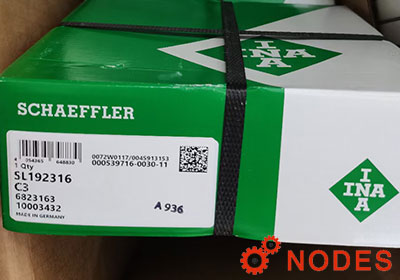

INA SL192316-XL bearing
80mm x 170mm x 58mm
