INA SL014930 roller bearings
Also known as : SL014930, NNC4930V
- Inside Diameter: 150 mm
- Outside Diameter: 210 mm
- Width: 60 mm
- Basic dynamic load rating: 410 kN
- Basic static load rating: 820 kN
INA SL014930 Bearing
INA SL014930 Bearing details
| model | SL014930 |
|---|---|
| d | 150 mm |
| D | 210 mm |
| B | 210 mm |
| C | 30 mm |
| D1 | 187.2 mm |
| d1 | 171.8 mm |
| rmin | 2 mm |
| Cr | 410000 N |
| C0r | 820000 N |
| Cur | 104000 N, Fatigue limit load, radial |
| Limiting speed | 1200 1/min |
| Reference speed | 1790 1/min |
| mass | 6.65 kg |
INA SL014930 roller bearings, Designation to DIN 5412: NNC4930V, Cylindrical roller bearings, locating bearing, double row, full complement cylindrical roller set
INA SL014930 bearing cross reference
INA SL014830 bearing
150mm x 190mm x 40mm
INA SL024830 bearing
150mm x 190mm x 40mm

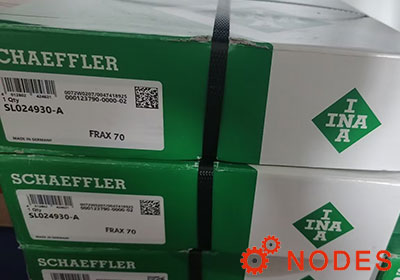

INA SL024930 bearing
150mm x 210mm x 60mm
INA SL04150-PP bearing
150mm x 210mm x 80mm
INA SL045030-PP bearing
150mm x 225mm x 100mm
INA SL182230 bearing
150mm x 270mm x 73mm

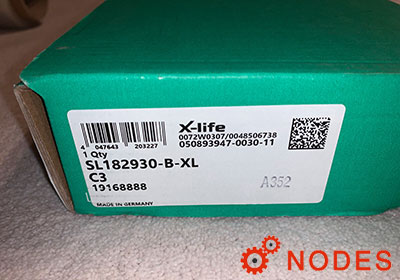

INA SL182930-XL bearing
150mm x 210mm x 36mm
INA SL183030 bearing
150mm x 225mm x 56mm
