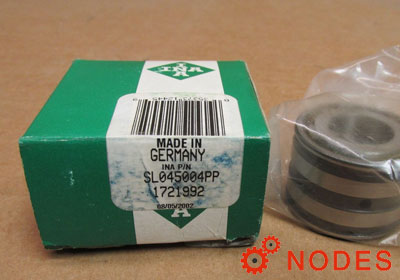

INA SL045004-PP roller bearings
Also known as : SL045004-PP,NNF5004ADA-2LSV
- Inside Diameter: 20 mm
- Outside Diameter: 42 mm
- Width: 30 mm
- Basic dynamic load rating: 41.5 kN
- Basic static load rating: 51 kN
INA SL045004-PP Bearing
INA SL045004-PP Bearing details
| model | SL045004-PP |
|---|---|
| d | 20 mm |
| D | 42 mm |
| B | 30 mm |
| Chamfer angle | 30 ° |
| C | 29 mm |
| C1 | 24.7 mm |
| Ca1 | 21.5 mm |
| Ca2 | 21 mm |
| D1 | 40.2 mm |
| d1 | 30.55 mm |
| d2 | 34 mm |
| d3 | 47 mm |
| m | 1.8 mm |
| rmin | 0.3 mm |
| t | 0.5 mm |
| X | 22.5 mm |
| Cr | 41500 N |
| C0r | 51000 N |
| Cur | 6900 N, Fatigue limit load, radial |
| Limiting speed | 5500 1/min |
| mass | 0.2 kg |
INA SL045004-PP roller bearings, Cylindrical roller bearings, locating bearing, double row, full complement cylindrical roller set, lip seals on both sides.
Designation for snap ring WRE (not included in delivery): WRE42, Designation for retaining ring to DIN 471 (not included in delivery): 42X1.75
