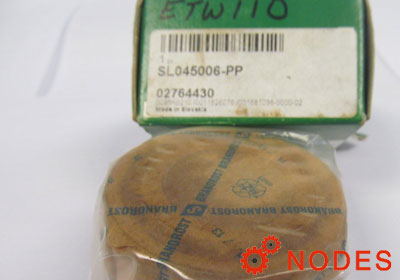

INA SL045006-PP roller bearings
Also known as : SL045006-PP,NNF5006ADA-2LSV
- Inside Diameter: 30 mm
- Outside Diameter: 55 mm
- Width: 34 mm
- Basic dynamic load rating: 50 kN
- Basic static load rating: 67 kN
INA SL045006-PP Bearing
INA SL045006-PP Bearing details
| model | SL045006-PP |
|---|---|
| d | 30 mm |
| D | 55 mm |
| B | 34 mm |
| Chamfer angle | 30 ° |
| C | 33 mm |
| C1 | 28.2 mm |
| Ca1 | 25 mm |
| Ca2 | 24 mm |
| D1 | 53 mm |
| d1 | 40.6 mm |
| d2 | 44 mm |
| d3 | 60 mm |
| m | 2.1 mm |
| rmin | 0.3 mm |
| t | 0.5 mm |
| X | 25.5 mm |
| Cr | 50000 N |
| C0r | 67000 N |
| Cur | 9500 N, Fatigue limit load, radial |
| Limiting speed | 4100 1/min |
| mass | 0.37 kg |
INA SL045006-PP roller bearings, Cylindrical roller bearings, locating bearing, double row, full complement cylindrical roller set, lip seals on both sides.
Designation for snap ring WRE (not included in delivery): WRE55, Designation for retaining ring to DIN 471 (not included in delivery): 55X2
