INA AXW35 Bearing

INA AXW35 bearing | 35x55x3.2 mm

Also known as : AXW35

  • Inside Diameter: 35 mm
  • Outside Diameter: 55 mm
  • Width: 3.2 mm
  • Basic dynamic load rating: 17.8 kN
  • Basic static load rating: 81 kN

Inquire Now

INA AXW35 Bearing

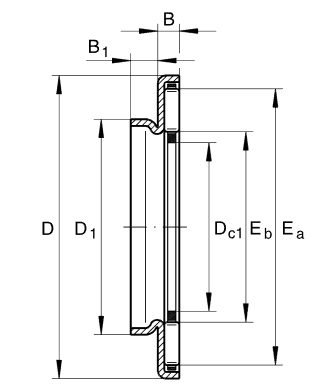

INA AXW35 Bearing details

Number AXW35
Type Needle thrust bearing
single direction, AXK with axial bearing washer

Dc1 35mm
D 55mm
B 3,2mm
B1 4mm
D1 42mm
Ea 51mm
Eb 39mm
m 27g Mass
Ca 17800N Basic dynamic load rating, axial
C0a 81000N Basic static load rating, axial
Cua 8400N Fatigue limit load
nG 65001/min Limiting speed
nϑr 31501/min Reference speed
  AS3552 Allocated axial bearing washer
    Suitable for combination with various drawn cup needle roller bearings and needle roller bearings, see under "Accessories".
  HK3512,
HK3516,
HK3520

  HK3518-RS
  BK3520
  NK32/20-TV,
NK32/30,
NKS28,
RNA4905,
RNA6905

  NKIS20,
NA4905,
NA6905,
NKI28/20-TV,
NKI28/30


As INA bearing distributor, Nodes bearings have INA AXW35 needle thrust bearings in stock. AXW35, single direction, AXK with axial bearing washer.
