INA D5 Bearing

INA D5 thrust bearing | 19.05x37.313x14.3 mm

Also known as : D5

  • Inside Diameter: 19.05 mm
  • Outside Diameter: 37.313 mm
  • Width: 14.3 mm
  • Basic dynamic load rating: 18.9 kN
  • Basic static load rating: 32.5 kN

Inquire Now

INA D5 Bearing

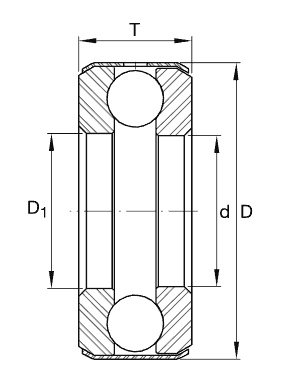

INA D5 Bearing details

Number D5
Type Thrust ball bearings
d 3/4inch
d 19,05mm
D 1,469inch
D 37,313mm
T 0,563inch
T 14,3mm
D1 0,781inch
m 0,15lbs Mass
m 70g Mass
Ca 4250lbf Basic dynamic load rating, axial
Ca 18900N Basic dynamic load rating, axial
C0a 7300lbf Basic static load rating, axial
C0a 32500N Basic static load rating, axial
nG 55001/min Limiting speed

As INA bearing distributor, Nodes bearings have INA D5 Thrust ball bearings in stock. D5, Axial deep groove ball bearings, single direction, with retainer, inch sizes.
