INA K89428-M Bearing

INA K89428-M bearings | 140x280x28mm

Also known as : K89428-M

  • Inside Diameter: 140 mm
  • Outside Diameter: 280 mm
  • Width: 28 mm
  • Basic dynamic load rating: 1390 kN
  • Basic static load rating: 4950 kN

Inquire Now

INA K89428-M Bearing

INA K89428-M Bearing details

Number K89428-M
Type Thrust roller bearings

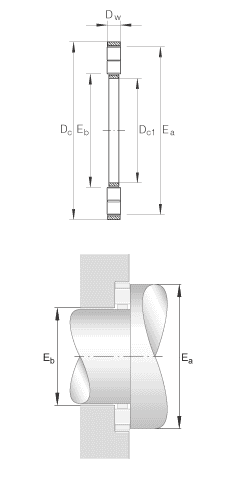

Dc1 140 mm
Dc 280 mm
Dw 28 mm
Ea 273 mm
Eb 155 mm
m 8,53 kg  Mass
Ca 1390000 N  Basic dynamic load rating, axial
C0a 4950000 N  Basic static load rating, axial
Cua 455000 N  Fatigue limit load
nG 1350 1/min  Limiting speed
nB 480 1/min  Reference speed
  GS89428  Allocated housing locating washer
  WS89428  Allocated shaft locating washer

As INA bearing distributor, Nodes bearings have INA K89428-M axial cylindrical roller and cage assembly in stock. K89428-M is single direction, double row, suitable for combination with axial bearing washers.
