INA TC613 Bearing

INA TC613 bearing | 9.525x20.638x1.984 mm

Also known as : TC613

  • Inside Diameter: 9.525 mm
  • Outside Diameter: 20.638 mm
  • Width: 1.984 mm
  • Basic dynamic load rating: 7.1 kN
  • Basic static load rating: 17.7 kN

Inquire Now

INA TC613 Bearing

INA TC613 Bearing details

Number TC613
Type Needle thrust bearings
single direction, to ABMA 21.2 - 1988, suitable for combination with axial bearing washers TWA, inch sizes

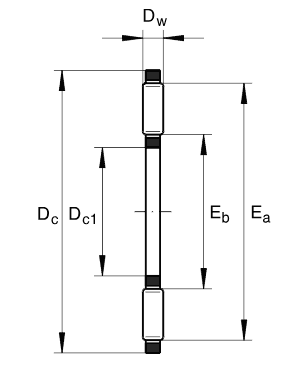

Dc1 3/8inch
Dc1 9,525mm
Dc 0,812inch
Dc 20,638mm
Dw 0,078inch
Dw 1,984mm
Ea 0,748inch
Ea 19mm
Eb 0,409inch
Eb 10,4mm
m 0,007lbs Mass
m 0,003kg Mass
Ca 1600lbf Basic dynamic load rating, axial
Ca 7100N Basic dynamic load rating, axial
C0a 4000lbf Basic static load rating, axial
C0a 17700N Basic static load rating, axial
nG 174001/min Limiting speed

As INA bearing distributor, Nodes bearings have INA TC613 needle thrust bearings in stock. TC613, .
