NSK 608DDWMC3E Bearing

NSK 608DDWMC3E miniature ball bearings

Also known as : 608DDWMC3E, 608-2RSC3

  • Inside Diameter: 8 mm
  • Outside Diameter: 22 mm
  • Width: 7 mm
  • Basic dynamic load rating: 3.3 kN
  • Basic static load rating: 1.37 kN

Inquire Now

NSK 608DDWMC3E Bearing

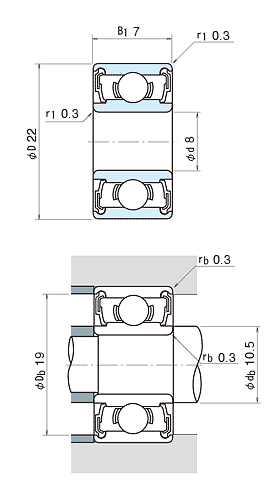

NSK 608DDWMC3E Bearing details

model 608DDWMC3E
d 8 mm
D 22 mm
B1 7 mm
r1 min. 0.3 mm
Cr 3300 N
C0r 1370 N
Limiting speeds 28000 min-1 (Grease)
Mass 12.2 g (approx.)

608DDWMC3E NSK bearing, Extra Small Ball Bearings and Miniature Ball Bearings Metric Design, DD: With Two Contact Sealed, W: Pressed steel snap cage, MC3 internal clearance, E: Quieter than standard

NSK 608DDWMC3E bearing cross reference

NSK 608T1XZZ1MC5 bearing
8mm x 22mm x 7mm
NSK MR128 bearing
8.0mm x 12mm x 2.5mm
NSK MR148 bearing
8.0mm x 14mm x 3.5mm
NSK 688A bearing
8.0mm x 16mm x 4.0mm
NSK 698 bearing
8.0mm x 19mm x 6.0mm
NSK 608 bearing
8.0mm x 22mm x 7.0mm
NSK 628 bearing
8.0mm x 24mm x 8.0mm
NSK 638 bearing
8.0mm x 28mm x 9.0mm
NSK 688ADD bearing
8mm x 16mm x 5mm
NSK 698DD bearing
8mm x 19mm x 6mm
NSK 608DD bearing
8mm x 22mm x 7mm
NSK 628DD bearing
8mm x 24mm x 8mm
