NSK 6308ZZ Bearing

NSK 6308ZZ Deep groove ball bearings

Also known as : 6308ZZ, 6308-2Z

  • Inside Diameter: 40 mm
  • Outside Diameter: 90 mm
  • Width: 23 mm
  • Basic dynamic load rating: 40.5 kN
  • Basic static load rating: 24 kN

Inquire Now


NSK 6308ZZ Bearing

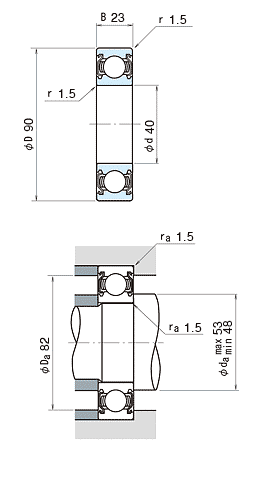

NSK 6308ZZ Bearing details

model 6308ZZ
d 40 mm
D 90 mm
B 23 mm
rmin. 1.5 mm
Cr 40500 N
4150 kgf
C0r 24000 N
2450 kgf
Limiting speeds 7500 min-1 (Grease)
f0 13.2 (Factor)
da min 48 mm
da max 53 mm
Da 82 mm
ra 1.5 mm
Mass 0.636 kg (approx.)

NSK 6308ZZ ball bearings, deep groove ball bearing, Single-Row, ZZ: With Two Shielded.
