NSK 6311ZZC3 Bearing

NSK 6311ZZC3 Deep groove ball bearings

Also known as : 6311ZZC3, 6311-2ZC3

• Inside Diameter: 55 mm
• Outside Diameter: 120 mm
• Width: 29 mm
• Basic dynamic load rating: 71.5 kN
• Basic static load rating: 44.5 kN

Inquire Now

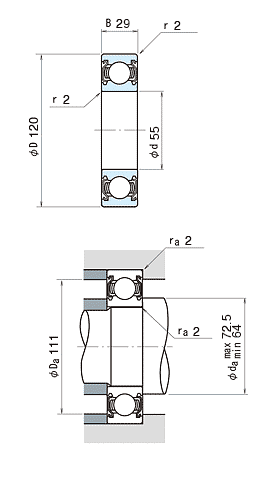

NSK 6311ZZC3 Bearing

model	6311ZZC3
d	55 mm
D	120 mm
B	29 mm
rmin.	2.0 mm
Cr	71500 N 7300 kgf
C0r	44500 N 4550 kgf
Limiting speeds	5600 min-1 (Grease)
f0	13.1 (Factor)
da min	64 mm
da max	72.5 mm
Da	111 mm
ra	2 mm
Mass	1.370 kg (approx.)

NSK 6311ZZC3 ball bearings, deep groove ball bearing, Single-Row, ZZ: With Two Shielded.
